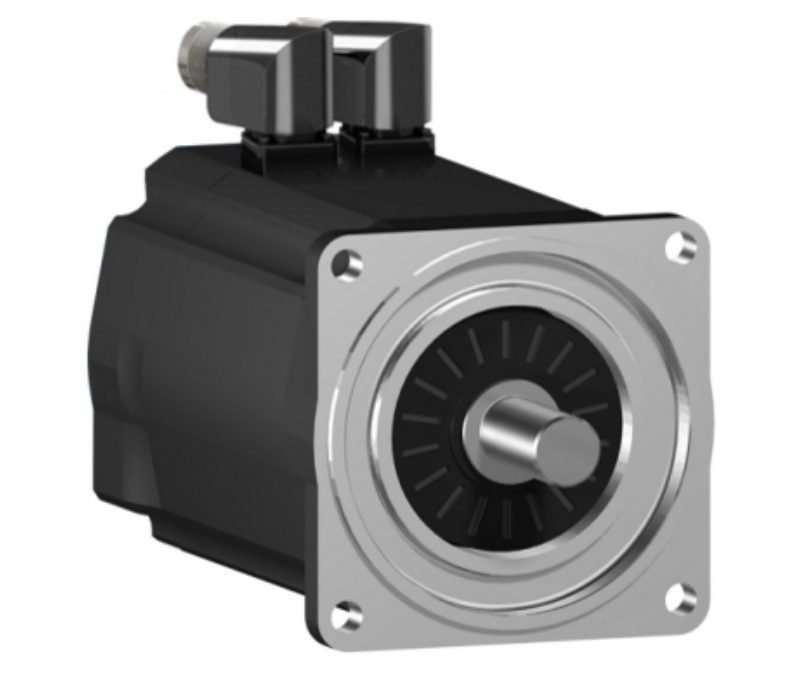

SH31003P12A2000 Schneider servo motor
Model: SH31003P12A2000 Schneider servo motor
Main Range Compatibility P…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range Compatibility | PacDrive 3 |
|---|---|
| Device short name | SH3…..P |
| Product or Component Type | Servo motor |
| Maximum mechanical speed | 6000 rpm |
|---|---|
| [Us] rated supply voltage | 115…480 V |
| Phase | Three phase |
| Continuous stall current | 6.6 A |
| Continuous stall torque | 70.8 lbf.in (8 N.m) 115…480 V three phase |
| Continuous power | 2400 W |
| Maximum current Irms | 28.3 A |
|---|---|
| Shaft end | Parallel key |
| Shaft diameter | 0.7 in (19 mm) |
| Shaft length | 1.6 in (40 mm) |
| Key width | 0.2 in (6 mm) |
| Length | 9.5 in (240.5 mm) |
|---|---|
| Centring collar diameter | 3.7 in (95 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.4 in (9.0 mm) |
| Circle diameter of the mounting holes | 4.5 in (115 mm) |
| Net Weight | 16.5 lb(US) (7.5 kg) |
