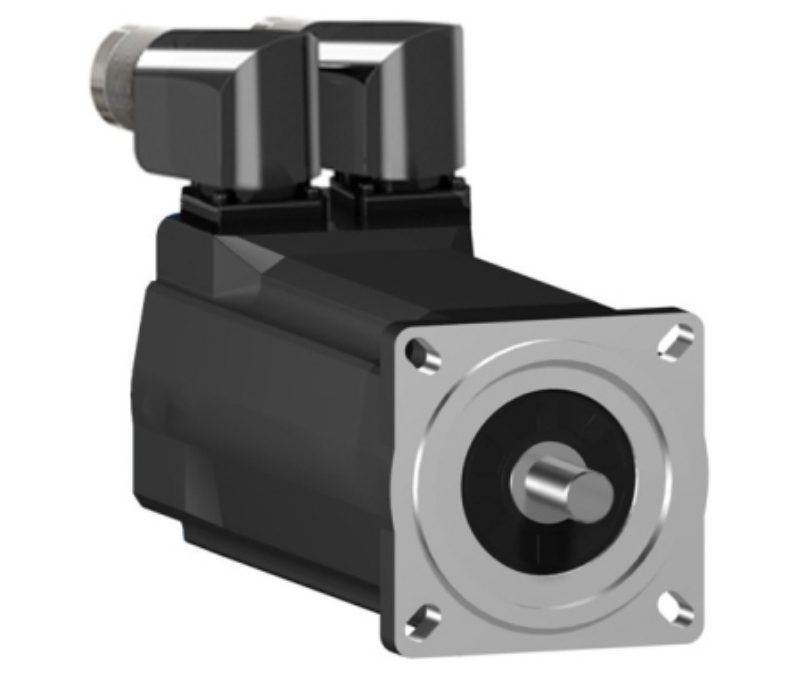

SH30703P12F2000 Schneider Servo motor
Model: SH30703P12F2000 Schneider Servo motor
Main Range Compatibility P…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range Compatibility | PacDrive 3 |
|---|---|
| Device short name | SH3…..P |
| Product or Component Type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
|---|---|
| [Us] rated supply voltage | 115…480 V |
| Phase | Three phase |
| Continuous stall current | 4.1 A |
| Continuous stall torque | 26.02 lbf.in (2.94 N.m) 115…480 V three phase |
| Continuous power | 1330 W |
| Maximum current Irms | 17 A |
|---|---|
| Shaft end | Parallel key |
| Shaft diameter | 0.6 in (14 mm) |
| Shaft length | 1.2 in (30 mm) |
| Key width | 0.2 in (5 mm) |
| Centring collar diameter | 2.4 in (60 mm) |
|---|---|
| Centring collar depth | 0.10 in (2.5 mm) |
| Number of mounting holes | 4 |
| Mounting holes diameter | 0.2 in (5.5 mm) |
| Circle diameter of the mounting holes | 3.2 in (82 mm) |
| Net Weight | 8.4 lb(US) (3.8 kg) |
