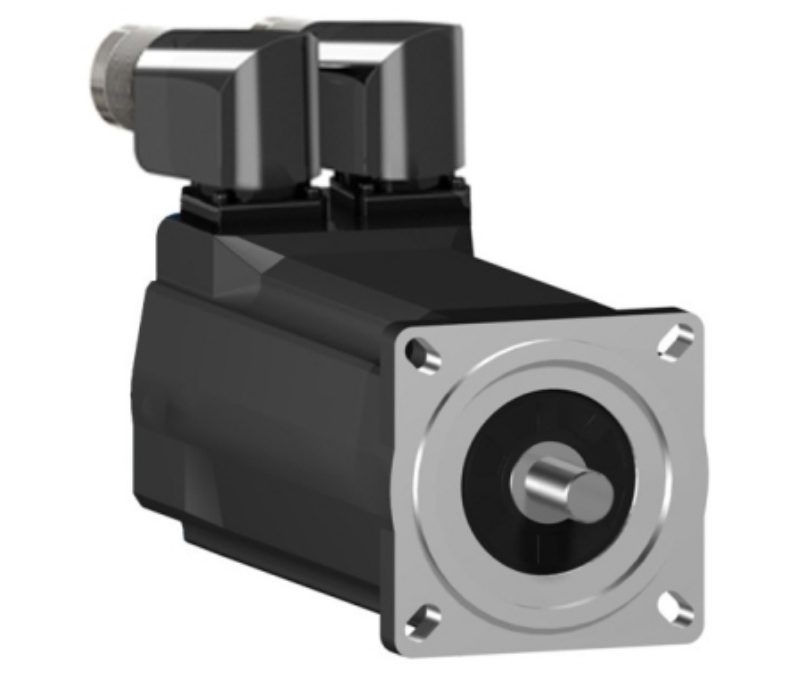

SH30703P12A2000 Schneider servo motor
Model: SH30703P12A2000 Schneider servo motor
Maximum current Irms 17 A …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Maximum current Irms | 17 A |
|---|---|
| Shaft end | Parallel key |
| Shaft diameter | 14 mm |
| Shaft length | 30 mm |
| Key width | 5 mm |
| Range compatibility | PacDrive 3 |
|---|---|
| Device short name | SH3…..P |
| Product or component type | Servo motor |
| Maximum mechanical speed | 8000 rpm |
|---|---|
| [Us] rated supply voltage | 115…480 V |
| Network number of phases | Three phase |
| Continuous stall current | 4.1 A |
| Continuous stall torque | 2.94 N.m at 115…480 V three phase |
| Continuous power | 1330 W |
| Maximum axial force Fa | 80 N |
|---|---|
| Type of cooling | Natural convection |
| Length | 220 mm |
| Centring collar diameter | 60 mm |
| Centring collar depth | 2.5 mm |
| Number of mounting holes | 4 |
| Mounting holes diameter | 5.5 mm |
| Circle diameter of the mounting holes | 82 mm |
| Net weight | 3.6 kg |
