Yaskawa

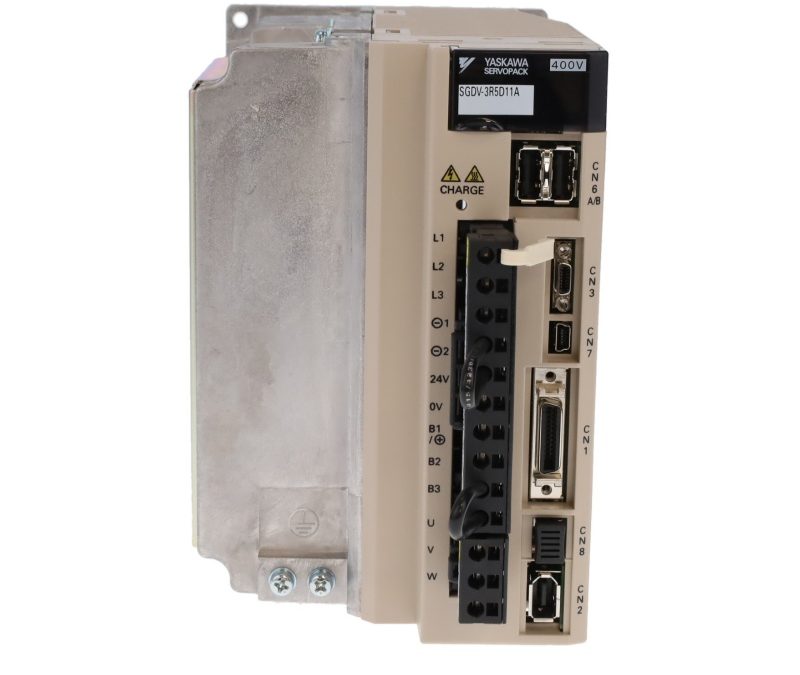

SGDV-3R5D11A Yaskawa Servo
Model: SGDV-3R5D11A Yaskawa Servo
Specifications Specificati…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Specifications
| In Stock | No |
|---|---|
| Ships Factory Direct | No |
| Manufacturer Part Number | SGDV-3R5D11A |
| Manufacturer | Yaskawa |
| Product Series | SIGMA V SGDV |
| Family Series | Yaskawa Drives, SIGMA V SGDV Series |
| Description | S5 AMP 1kW 400V M2 |
| Power Rating (kW) | 1 kW |
| Voltage | 400 VAC |
| Continuous Rated Current (3PH) | 3.5 A |
| Peak Rated Current (3PH) | 8.5 A |
| Control Mode | Rotary Servo |
| Phase | 3 |
| Encoder Feedback | Yes |
| Frequency Response | 1,000 Hz |
| Analog Outputs | 2 |
| Mechatrolink | Yes |
| Digital Inputs | 7 |
| Digital Outputs | 3 |
| Line Regenerative | No |
| Onboard Comm. | Serial |
| Profibus | Optional |
| Oper Temp Range | 0-55 °C |
| DeviceNet | Optional |
| Approvals | UL |
| RoHS | No |
| Net Weight | 7 lbs |
