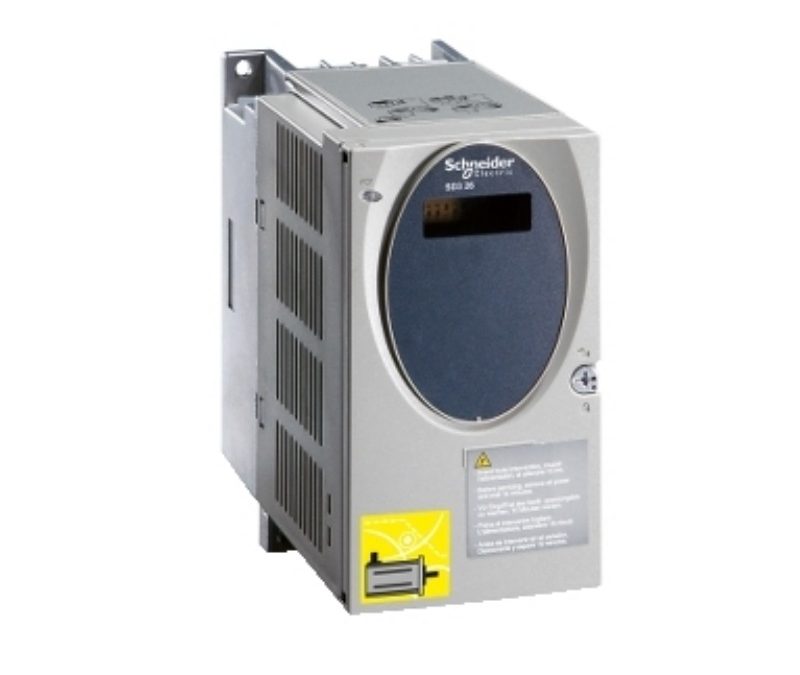

SD326DU25S2 schneider motion control stepper motor drive
Model: SD326DU25S2 schneider motion control stepper motor drive
Main Range of Product Lexi…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Lexium SD3 |
|---|---|
| Product or Component Type | Motion stepper drive |
| Device short name | SD326 |
| Supply voltage limits | 100…120 V 200…240 V |
| Format of the drive | Block |
|---|---|
| Phase | Single phase |
| [Us] rated supply voltage | 100…120 V – 15…10 % 200…230 V – 15…10 % |
| Supply voltage type | AC/DC |
| Network frequency limits | 50…60 Hz – 15…10 %) |
| Communication interface | Pulse/direction, Integrated |
| Maximum motor phase current | 2.5 A |
| Nominal power | 180 W 115 V 270 W 230 V |
| Short-circuit current | 0.5 kA |
| Associated fuse rating | 6 A 115 V 6 A 230 V |
| Overvoltage category | III |
| Inrush current | 60 A |
| Maximum mechanical speed | 3000 rpm |
|---|---|
| Height | 5.7 in (145 mm) |
| Width | 2.8 in (72 mm) |
| Depth | 5.5 in (140 mm) |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Net Weight | 2.4 lb(US) (1.1 kg) |
