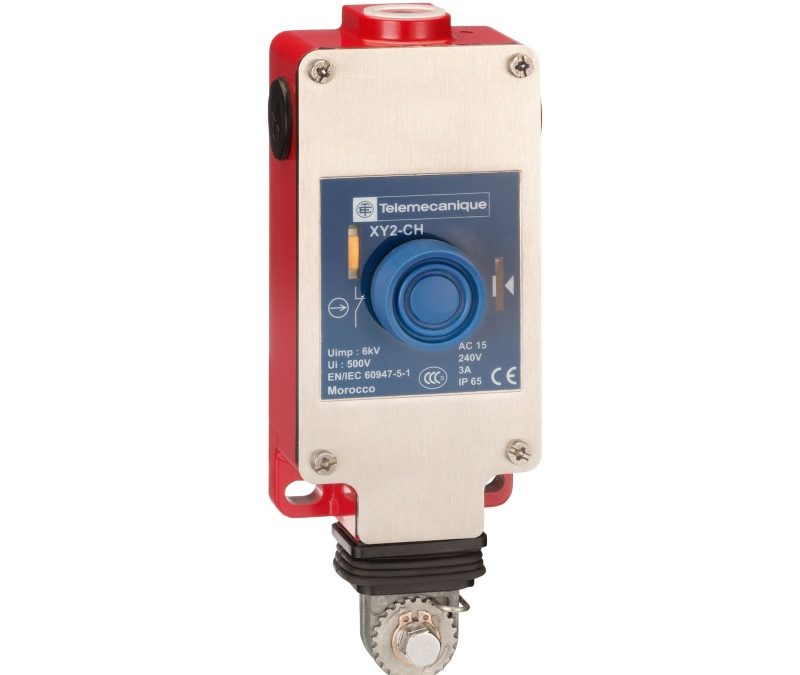

Schneider (Telemecanique) XY2CH13270 Latching Emergency Rope Pull Stop Switch
Model: Schneider (Telemecanique) XY2CH13270 Latching Emergency Rope Pull Stop Switch
Parameter Specification Br…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric (Telemecanique Sensors) |
| Part No. | XY2CH13270 |
| Series | Preventa XY2-CH |
| Product Type | Latching Rope Pull E-Stop Switch |
| Contact Configuration | 2 Normally Closed (2NC), Slow-break |
| Reset Mode | Booted Pushbutton Manual Reset |
| Max Pull Cable Length | 30 Meters |
| Recommended Support Spacing | 5 m between cable anchors |
| Cable Entry | 3 × Pg13.5 tapped gland ports |
| Terminal Spec | 0.5~1.5mm² wire, torque 0.8~1.2 N·m |
| Rated AC Current (240V AC-15) | 3 A |
| Rated DC Current (250V DC-13) | 0.27 A |
| Conventional Thermal Current(Ithe) | 10 A |
| Rated Insulation Voltage(Ui) | 500 V |
| Impulse Withstand Voltage(Uimp) | 6 kV |
| Protection Grade | IP65 |
| Safety Rating | PL e / Cat.4 / SIL3 (with proper circuit) |
| Mechanical Life | 800,000 Operations |
| Operating Temp | -25 ℃ ~ +70 ℃ |
| Storage Temp | -40 ℃ ~ +70 ℃ |
| Overall Dimension(L×W×H) | 68 × 201 × 95 mm |
| Net Weight | 0.865 kg |
