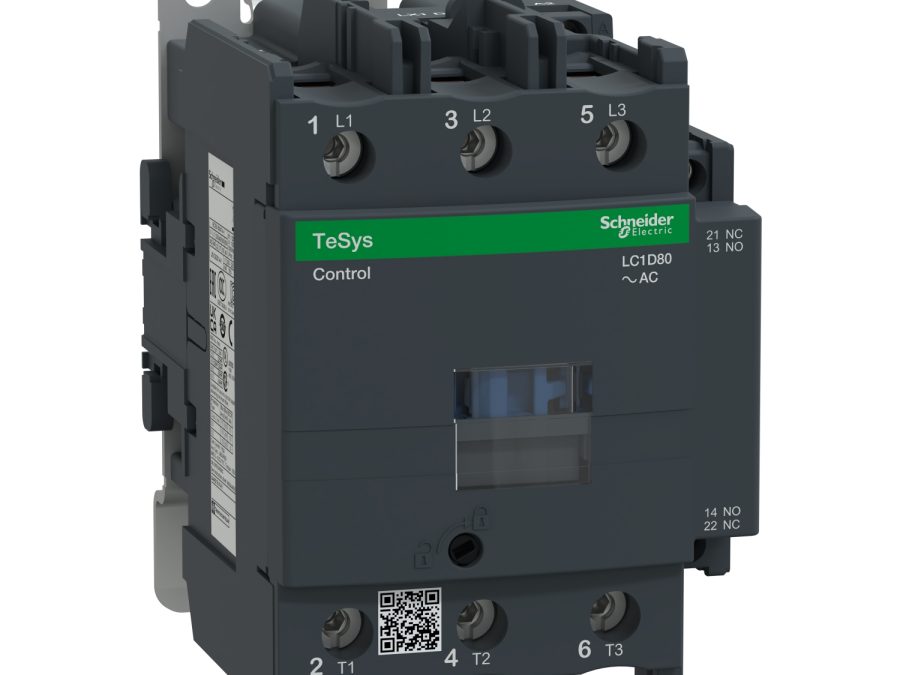

Schneider Electric LC1D80FE7 IEC Contactor Specification Sheet
Model: Schneider Electric LC1D80FE7 IEC Contactor Specification Sheet
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | LC1D80FE7 |
| Brand | Schneider Electric |
| Product Type | Contactor |
| Product Series | TeSys Deca |
| Contactor Application | Resistive load, Motor control |
| Utilisation Category | AC-3, AC-3e, AC-4, AC-1 |
| Number of Poles | 3P (3 NO main contacts) |
| Rated Operational Voltage (Power Circuit) | ≤300 V DC (25 – 400 Hz); ≤690 V AC |
| Rated Operational Current (Power Circuit) | 125 A (at <60°C, ≤1000 V AC, AC-1); 80 A (at <60°C, ≤440 V AC, AC-3/AC-3e) |
| Rated Operational Current (Control Circuit) | NA |
| Control Circuit Voltage | 115 V AC 50/60 Hz |
| Motor Power Ratings | 22 kW (220 – 230 V AC, 50/60 Hz, AC-3); 60 hp (460/480 V AC, 50/60 Hz, 3 – phase motors) |
| Breaking Capacity | 1100 A at 440 V (power circuit, conforming to IEC 60947) |
| Short – Time Withstand Current | 640 A at 40°C for 10 s (power circuit); 990 A at 40°C for 1 s (power circuit) |
| Insulation Voltage (Power Circuit) | 600 V (CSA/UL); 1000 V (IEC 60947 – 4 – 1) |
| Enclosure Rating | IP20 (front face, IEC 60529) |
| Mounting Method | Rail or plate mounting |
| Dimensions (W×H×D) | 85 mm×127 mm×130 mm |
| Net Weight | 1.59 kg (3.51 lb) |
| Certifications | CCC, UL, CB Scheme, CSA, CE, UKCA, Marine, EAC |
| Operating Temperature Range | -40°C to 60°C (derating at 60 – 70°C) |
| Operating Altitude | 0 – 3000 m |
| Fire Resistance | 850°C (IEC 60695 – 2 – 1) |
| Flame Retardance | V1 (UL 94) |
| Warranty | 18 months |
| Country of Origin | CZ |
