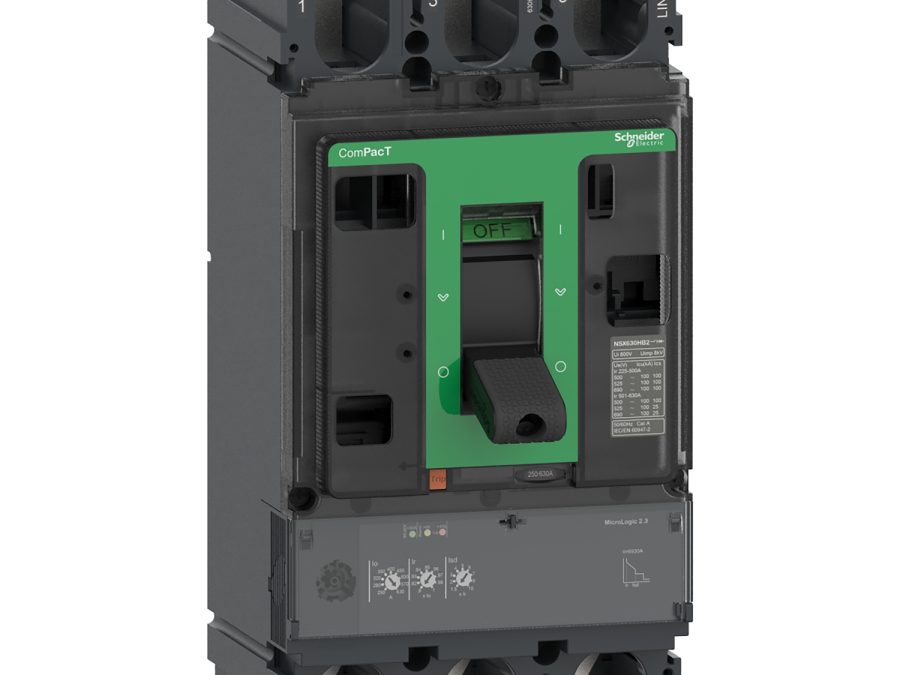

Schneider Electric Circuit breaker ComPacT NSX400N, 50kA at 415VAC, MicroLogic 2.3 trip unit 400A, 3 poles 3d
Model: Schneider Electric Circuit breaker ComPacT NSX400N, 50kA at 415VAC, MicroLogic 2.3 trip unit 400A, 3 poles 3d
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | NSX400N |
| Brand | Schneider Electric |
| Product Series | ComPacT |
| Product Type | Circuit Breaker |
| Application | Distribution |
| Pole Configuration | 3 poles (3P), 3 protected poles (3D) |
| Rated Current ([In]) | 400 A (at 40 °C) |
| Rated Operational Voltage ([Ue]) | 690 V AC (50/60 Hz) |
| Rated Insulation Voltage ([Ui]) | 800 V AC (50/60 Hz) |
| Rated Impulse Withstand Voltage ([Uimp]) | 8 kV |
| Breaking Capacity (Icu) | 50 kA at 380/415 V AC; 85 kA at 220/240 V AC; 10 kA at 660/690 V AC (IEC 60947-2) |
| Trip Unit | MicroLogic 2.3 (electronic), protection functions: LSoI |
| Control Type | Toggle |
| Mounting Mode | Fixed, horizontal/vertical (flat on the back) |
| Protection Ratings | IP40 (IEC 60529), IK07 (IEC 62262), Overvoltage Category III |
| Operating Ambient Temperature | -25…70 °C |
| Storage Ambient Temperature | -50…85 °C |
| Dimensions (W×H×D) | 140 mm × 255 mm × 110 mm |
| Net Weight | 6.05 kg |
| Mechanical Durability | 15,000 cycles |
| Electrical Durability | 12,000 cycles (440 V, In/2); 3,000 cycles (690 V, In) |
| Power Dissipation per Pole | 19.2 W |
| RoHS Compliance | Compliant with Exemptions |
| PVC Status | PVC-free |
