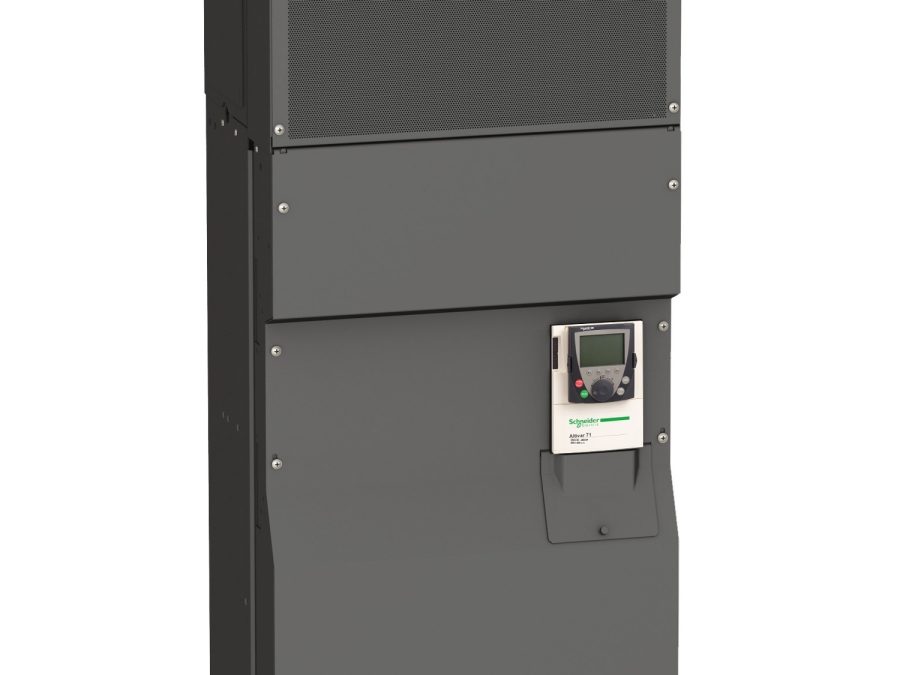

Schneider Electric ATV71HC25N4D Altivar 71 Variable Speed Drive

Schneider Schneider

Model: Schneider Electric ATV71HC25N4D Altivar 71 Variable Speed Drive

Parameter Specification Br…

Request a Quote

Genuine products, direct from the factory
Technical selection and commissioning support
Bulk purchasing and customization available

Specifications & Service

MOQ	1 PCS
Warranty	1 year
Delivery Time	3-5 days
Shipping	FedEx/DHL/UPS/TNT
Payment	TT/Western Union

Product Details

Parameter	Specification
Brand	Schneider Electric
Model	ATV71HC25N4D
Product Series	Altivar 71
Rated Power	250 kW / 335 HP
Input Voltage	380…480 V 3-phase AC
Input Frequency	47.5…63 Hz
Nominal Output Current (380V)	477 A
Output Frequency Range	0.1…599 Hz
Switching Frequency	1~16 kHz adjustable
Apparent Power	314 kVA
Integrated EMC Filter	Yes
Cooling Type	Forced air cooling with heat sink
Control Mode	V/F, sensorless & closed-loop vector control
Protection Class	IP20
Operating Temperature	-10 … +50 °C
Dimensions (W×H×D)	500 × 1490 × 370 mm
Net Weight	195 kg
Max Motor Cable Length	100m shielded / 200m unshielded
Certifications	CE, UL, CSA, C-Tick, DNV
