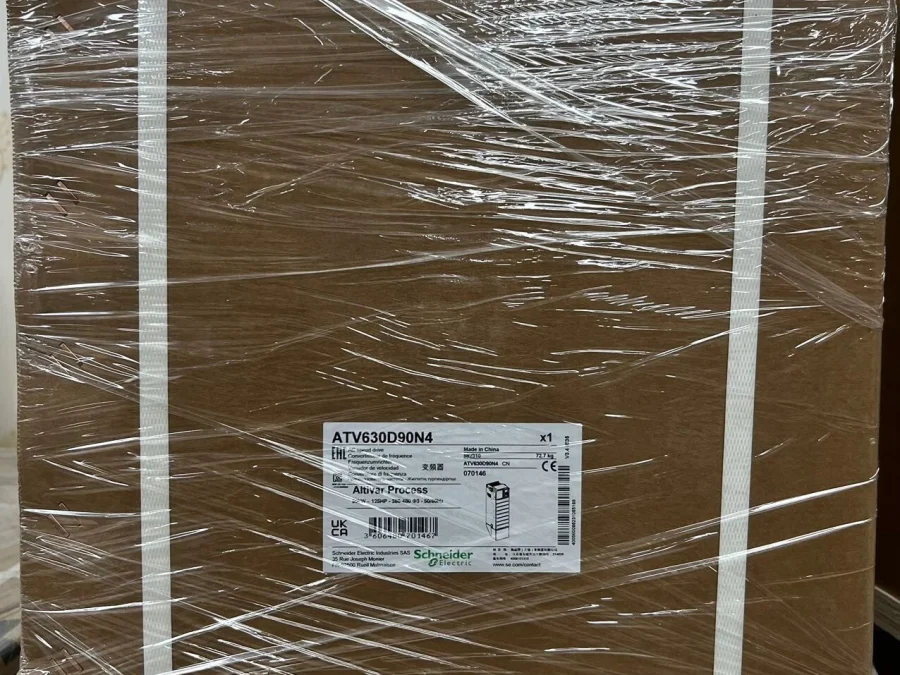

Schneider Electric ATV630D90N4 Altivar Process Variable Speed Drive
Model: Schneider Electric ATV630D90N4 Altivar Process Variable Speed Drive
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | ATV630D90N4 |
| Brand | Schneider Electric |
| Product Series | Altivar Process ATV600 |
| Product Type | Variable Speed Drive (VFD) |
| Rated Motor Power | Normal Duty: 90 kW / 125 hp; Heavy Duty: 75 kW / 100 hp |
| Input Specifications | 3-phase; Voltage: 380-480 V (-15%/+10%); Frequency: 50-60 Hz (-5%/+5%); Max. Line Isc: 50 kA |
| Input Current | Normal Duty: 156.2 A (380 V), 135.8 A (480 V); Heavy Duty: 134.3 A (380 V), 118.1 A (480 V) |
| Output Specifications | Continuous Current: 173 A (Normal Duty/2.5 kHz), 145 A (Heavy Duty/2.5 kHz); Frequency: 0.1-500 Hz; Voltage: ≤ Supply Voltage |
| Overload Capacity | Normal Duty: 1.1×In for 60 s; Heavy Duty: 1.5×In for 60 s; Max. Transient Current: 190.3 A (Normal), 217.5 A (Heavy) |
| Apparent Power | 112.9 kVA (480 V Normal Duty); 98.2 kVA (480 V Heavy Duty) |
| Control Modes | Asynchronous (constant/variable torque); Synchronous (permanent magnet/reluctance motors) |
| Key Safety Feature | STO (Safe Torque Off) SIL 3 |
| Protection Rating | IP21 (IEC 60529); UL Type 1 (UL 508C) |
| Mounting Type | Wall-mounted; Vertical ±10° operating position |
| Dimensions (W×H×D) | 290 mm × 922 mm × 323 mm (11.4 in × 36.3 in × 12.7 in) |
| Net Weight | 58.5 kg (129.0 lb (US)); Package Weight: 66.0 kg (145.5 lb (US)) |
| Package 1 Specifications | 1 piece/package, 43.0 cm × 47.0 cm × 110.0 cm (16.9 in × 18.5 in × 43.3 in) |
| Operating Temperature | -15…50 °C (without derating); 50…60 °C (with derating) |
| Operating Altitude | ≤1000 m (no derating); 1000-4800 m (1% current derating per 100 m) |
| Communication Protocols | Ethernet, Modbus Serial, Modbus TCP; Optional: Profibus DP V1, PROFINET, DeviceNet, CANopen |
| I/O Configuration | 8×Discrete Inputs (2×pulse input 0-30 kHz), 3×Relay Outputs, 3×Analog Inputs (12-bit), 2×Analog Outputs (10-bit) |
| Cooling Type | Forced convection; Air throughput: 295 m³/h (77932.2 Gal/hr (US)) |
| Certifications | CE, UL, CSA, ATEX (Zone 2/22), DNV-GL, INERIS, TÜV |
| Standards Compliance | IEC 61800-3 (C2/C3), IEC 61800-5-1, UL 508C, IEC 61508 |
| Country of Origin | IN (India) |
| Warranty | 18 months |
| Key Features | Integrated EMC filter (IEC 61800-3 C3), adjustable PID regulator, motor slip compensation |
