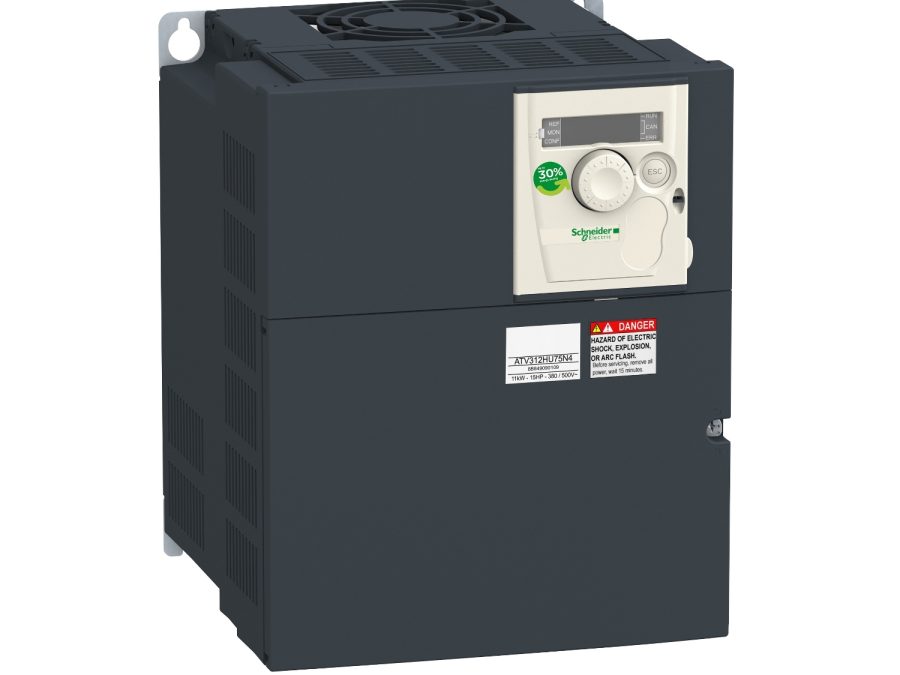

Schneider Electric ATV312HU55N4 Variable-Frequency Drive (VFD)
Model: Schneider Electric ATV312HU55N4 Variable-Frequency Drive (VFD)
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | ATV312HU55N4 |
| Brand | Schneider Electric |
| Product Series | Altivar 312 |
| Product Type | Variable-Frequency Drive (VFD) |
| Applicable Motor Type | Asynchronous motors |
| Rated Motor Power | 5.5 kW (7.5 HP) |
| Input Supply | 3-phase, 380-500 V; Supply frequency: 50-60 Hz (±5%) |
| Rated Apparent Power | 15 kVA |
| Rated Line Current | 21.9 A (380 V), 16.5 A (500 V) |
| Continuous Output Current | 14.3 A (at 4 kHz) |
| Output Frequency Range | 0-500 Hz |
| IP Protection Rating | Upper part: IP20 (without cover), IP31, IP41; Connection terminals: IP21 |
| Net Weight | 6.5 kg (14.3 lb (US)) |
| Dimensions (W×H×D) | 180 mm × 232 mm × 172 mm (7.09 in × 9.1 in × 6.8 in) |
| Warranty Period | 18 months |
