Schneider

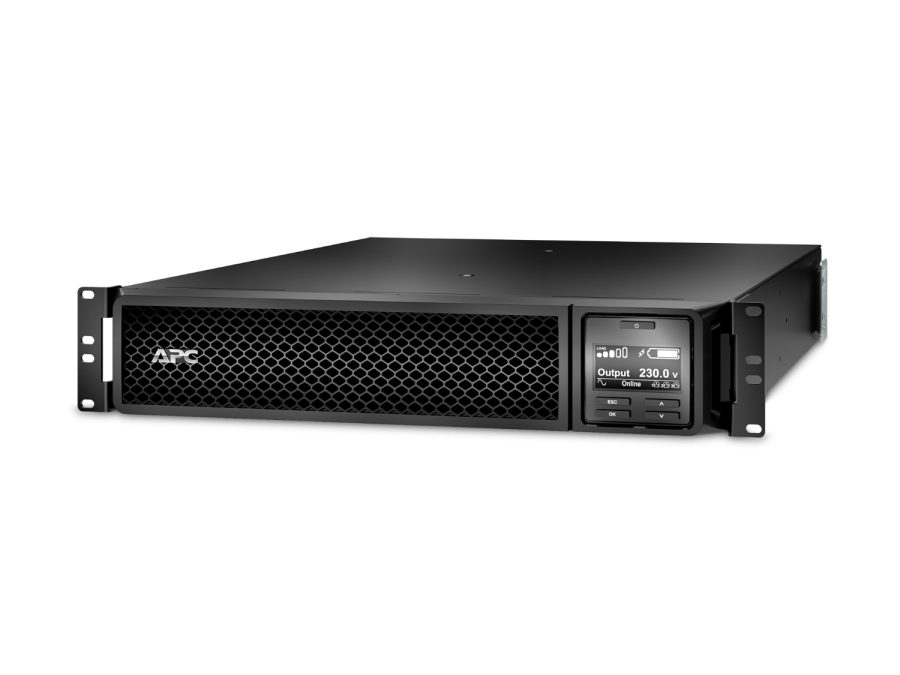

Schneider Electric APC SRT3000RMXLI Smart-UPS On-Line Specification Sheet
Model: Schneider Electric APC SRT3000RMXLI Smart-UPS On-Line Specification Sheet
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | SRT3000RMXLI |
| Brand | Schneider Electric (APC) |
| Product Type | Uninterruptible Power Supply (UPS) |
| Product Series | Smart-UPS On-Line |
| UPS Topology | Double Conversion On-Line |
| Rated Power | 3000 VA / 2700 W |
| Input Voltage | Main: 230 V; Other: 220 V, 240 V; Input Voltage Limits: 100-275 V (adjustable, half load) |
| Input Frequency | 40-70 Hz (auto-sensing) |
| Input Connection Type | BS1363A British, IEC 60320 C20, Schuko CEE 7/EU1-16P |
| Output Voltage | Main: 230 V; Other: 220 V, 240 V (configurable nominal voltage) |
| Output Frequency | 50/60 Hz ±3 Hz (sync to mains) |
| Output Waveform | Sine Wave |
| Output Connections | 8×IEC 60320 C13, 2×IEC 60320 C19, 2×IEC Jumpers |
| Bypass Type | Internal bypass (automatic and manual) |
| Harmonic Distortion | <2% |
| Crest Factor | 3:1 |
| Battery Type | Lead-Acid Battery |
| Battery Voltage | 96 V |
| Battery Recharge Time | 3 hours |
| Battery Life | 3-5 years |
| Replacement Battery Model | APCRBC152 |
| Battery Charger Power | 168 W (rated) |
| Dimensions (W×H×D) | 43.2 cm × 8.5 cm × 63.5 cm |
| Net Weight | 31.3 kg |
| Package 1 Specifications | 1 piece/package, 59.9 cm × 24.6 cm × 87.1 cm, 39.910 kg |
| Mounting Type | Rack-mounted (2U), horizontal mounting, front location (lower preference) |
| Protection Rating | IP20 |
| Operating Ambient Temperature | 0…40 °C |
| Storage Ambient Temperature | -15…45 °C |
| Operating Altitude | 0…3048 m (10000 ft) |
| Storage Altitude | 0…15240 m |
| Relative Humidity | 0-95% (non-condensing, operation/storage) |
| Acoustic Level | 55 dBA |
| Heat Dissipation | 703 Btu/h |
| Surge Energy Rating | 340 J |
| Communications | USB compatible, 1×SmartSlot, audible/visible alarms (severity-prioritized), emergency power off |
| Certifications | CE, EAC, RCM, VDE, UK PSTI; Complies with EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Warranty | 3 years (repair/replace, excluding battery); 2 years (battery) |
| Included Accessories | CD (software/documentation), installation guide, rack mounting brackets/rails, USB cable, warranty card |
