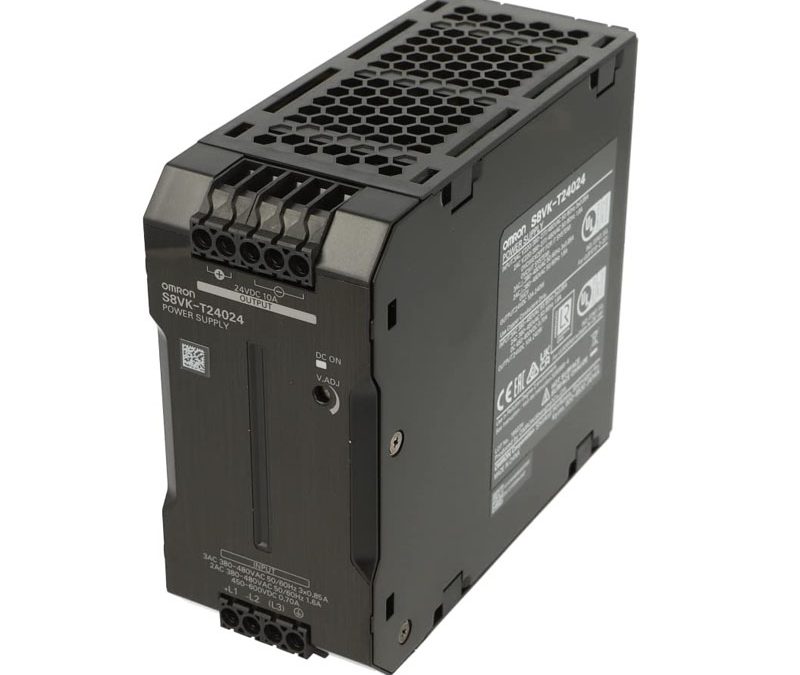

S8VK-T24024 Omron Switch Mode Power Supply
Model: S8VK-T24024 Omron Switch Mode Power Supply
Power rating 240 W Output …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Power rating | 240 W | |
|---|---|---|
| Output voltage | 24 VDC | |
| Efficiency | 89 % typ. (Three-phase 400 VAC input) | |
| Input | Rated input voltage | 380 to 480 VAC (Three-phase / two-phase) 450 to 600 VDC |
| Allowable input voltage variable range | 340 to 576 VAC (Two-phase)/320 to 576 VAC (Three-phase) 450 to 810 VDC |
|
| Frequency | 50/60Hz (47 to 63 Hz) | |
| Rated input current | 0.74 A typ. (Three-phase 400 VAC input) | |
| Leakage current | 3.5 mA max., 0.80 mA typ. (Three-phase 400 VAC input) | |
| Inrush current (cold start at 25 ℃) | 29 A typ. (Three-phase 400 VAC input) | |
| Output | Rated output current | 10 A |
| Output voltage variable range | 24 to 29.5 VDC With V.ADJ | |
| Maximum peak current | 12 A | |
| Ripple | 50 mV(p-p) max. | |
| Static input variation influence | 0.5 % max. | |
| Static load variation influence | 1.5 % max. | |
| Ambient temperature variation influence | 0.05 %/℃ max. | |
| Start up time | 600 ms typ. (Three-phase 400 VAC input) | |
| Hold time | 25 ms typ. (Three-phase 400 VAC input) | |
| Additional functions | Overload protection | Yes, automatic reset |
| Overvoltage protection | Yes, Shut off the input voltage and turn on the input again | |
| Series operation | Yes (Up to 2 Power Supplies with external diode) | |
| Parallel operation | Yes (Up to 2 Power Supplies) | |
| Output indicator | Yes (LED, color: green, lighting from 80 to 90% or more of rated voltage) | |
| Insulation | Dielectric strength | Between all input terminals and all output terminals: 3 kVAC for 1 min, Cut-off current: 20 mA Between all input terminals and PE terminals: 2.5 kVAC for 1 min, Cut-off current: 20 mA Between all output terminals and PE terminals: 1 kVAC for 1 min, Cut-off current: 30 mA |
| Insulation resistance | Between all output terminals and all input terminals/ PE terminals: 100 MΩ min., at 500 VDC | |
| Environment | Vibration resistance | 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times | |
| Ambient temperature (Operating) | -40 to 70 ℃ (with no freezing or condensation) | |
| Ambient temperature (Storage) | -40 to 85 ℃ (with no freezing or condensation) | |
| Ambient humidity (Operating) | 95 %RH max. | |
| Ambient humidity (Storage) | 95 %RH max. | |
| Reliability | MTBF | 135,000 hours min. |
| Construction | Construction | Covered type |
| Connection | Terminal blocks | |
| Terminal type | Rod terminal | |
| Mounting | DIN track mounting | |
| Degree of protection | IP20, EN/IEC 60529 | |
| Weight (Main) | 850 g max. | |
