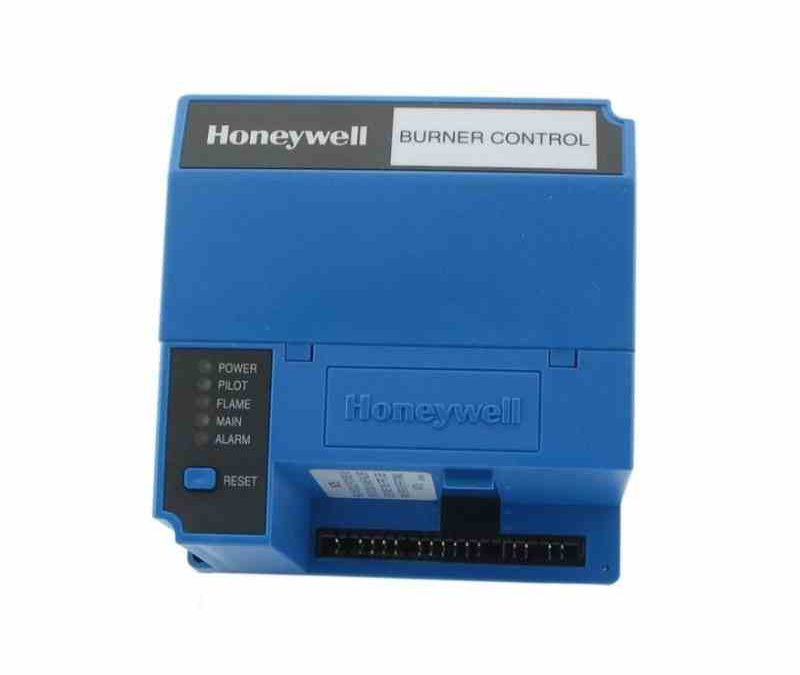

RM7840G1014 Honeywell Programming Burner Control

OTHER OTHER

Model: RM7840G1014 Honeywell Programming Burner Control

RM7840G1014/U BURNER MOD F…

Specifications & Service

Application: Programming Control
Dimensions (in.): 5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase x 6 3/32 in. deep with Q7800B Subbase
Dimensions (mm) : 127 mm wide x 127 mm high x 133 mm deep with Q7800A Subbase x 155 mm deep with Q7800B Subbase
Weight (lb) : 1 lb 13 oz
Weight (kg) : 0.8 kg
Comments : LHL-LF Proven
Frequency: 50 Hz; 60 Hz (±10%)
Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ.
Approvals, Canadian Standards Association: Certified, File No. LR95329-3.
Voltage: 120 Vac (+10, -15%)
Shipping and Storage Temperature Range (F): -40 F to +140 F
Shipping and Storage Temperature Range (C): -40 C to +60 C
Approvals, Federal Communications Commission : FCC Part 15, Class B, Emissions.
Flame Establishing Period – Pilot : 4 sec or 10 sec
Flame Establishing Period – Main : 10 sec, or 15 sec, or 30 sec, or Intermittent
Interlocks : Running
Preignition : Yes
PrePurge : Determined by ST7800A Purge Timer Card
PostPurge : 15 sec
Early Spark Termination : Yes, 5 sec
Required Components : Q7800A,B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame Signal Amplifier. ST7800A Plug-in Purge Timer Card.
AirFlow Check: User selectable
Second Stage Pilot Valve : selectable
Pilot Type : interrupted
Vibration : 0.5 G environment
Approvals, Control Safety Devices : Acceptable: CSD-1
Approvals, Swiss RE : Acceptable
Approvals, Factory Mutual : Report No. OX4A5.AF.
