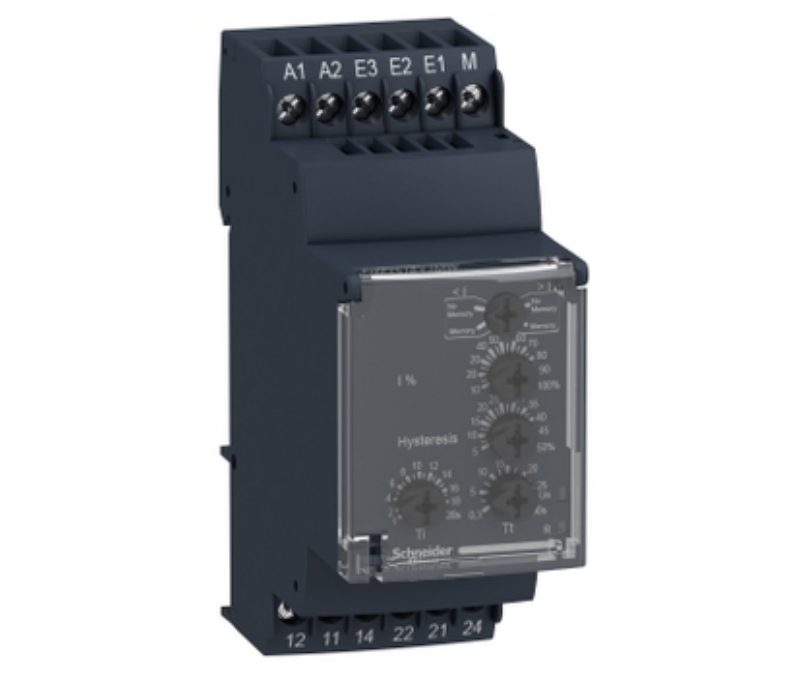

RM35JA32MW Schneider Control relays
Model: RM35JA32MW Schneider Control relays
Main Range of Product Harm…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | Harmony Control Relays |
|---|---|
| Relay Type | Current control relay |
| Product or Component Type | Current control relay |
| Relay name | RM35JA |
| Relay monitored parameters | Overcurrent or undercurrent detection |
| time delay | Adjustable 0.3…30 s, 0 + 10 % Tt- time delay upon fault Adjustable 1…20 s, 0 + 10 % Ti- inhibition time delay upon startup |
| Switching capacity in VA | 1250 VA |
| Minimum switching current | 10 mA 5 V DC |
| Maximum switching current | 5 A AC/DC |
| Maximum power consumption in VA | 3.5 VA AC |
| Measurement range | 150 mA…15 A current AC/DC |
| Utilisation category | AC-12 IEC 60947-5-1 AC-13 IEC 60947-5-1 AC-14 IEC 60947-5-1 AC-15 IEC 60947-5-1 DC-12 IEC 60947-5-1 DC-13 IEC 60947-5-1 DC-14 IEC 60947-5-1 |
| Contacts type and composition | 2 C/O |
| Reset time | 1500 ms time delay |
|---|---|
| Maximum switching voltage | 250 V AC/DC |
| Supply voltage limits | 20.4…264 V AC/DC |
| operating voltage tolerance | – 15 % + 10 % Un |
| Maximum power consumption in W | 0.6 W DC |
| Control circuit frequency | 40…70 Hz +/- 10 % |
| Resistance across terminals | 0.005 Ohm E3-M terminals 0.015 Ohm E2-M terminals 0.05 Ohm E1-M terminals |
| Output contacts | 2 C/O |
| Nominal output current | 5 A |
| Maximum measuring cycle | 30 ms measurement cycle as true rms value |
| Hysteresis | 5…50 % threshold setting |
| delay at power up | 0.3 s |
| Measurement accuracy | +/- 10 % of the full scale value |
| Repeat accuracy | +/- 0.5 % input and measurement circuit +/- 2 % time delay |
| Measurement error | 0.05 %/°C with temperature variation 1 by volt over the whole range with voltage variation |
| Polarity | No DC |
| Threshold setting | 10…100 % |
| Marking | CE : EMC 89/336/EEC CE : 73/23/EEC |
| Overvoltage category | III IEC 60664-1 |
| Insulation resistance | > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 > 1 MOhm 500 V DC between supply and measurement IEC 60664-1 |
| [Ui] rated insulation voltage | 250 V IEC 60664-1 |
| Operating position | Any position without derating |
| Connections – terminals | Screw terminals, 1 x 0.5…1 x 4 mm² AWG 20…AWG 11) solid without cable end Screw terminals, 2 x 0.5…2 x 2.5 mm² AWG 20…AWG 14) solid without cable end Screw terminals, 1 x 0.2…1 x 2.5 mm² AWG 24…AWG 12) flexible with cable end Screw terminals, 2 x 0.2…2 x 1.5 mm² AWG 24…AWG 16) flexible with cable end |
| Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1 |
| Housing material | Self-extinguishing plastic |
| Local signalling | for power ON LED (green) for relay ON LED (yellow) |
| Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Operating rate | <= 360 operations/hour full load |
| [Un] rated nominal voltage | 24…240 V AC/DC 50/60 Hz, non self-powered |
| Safety reliability data | MTTFd = 296.8 years B10d = 270000 |
| Contacts material | Cadmium free |
| Width | 1.4 in (35 mm) |
| Control Type | Without test button |
| Net Weight | 0.29 lb(US) (0.13 kg) |
| Immunity to microbreaks | 50 ms |
|---|---|
| Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3 Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 |
| Standards | IEC 60255-6 |
| Product Certifications | GL UL GOST C-tick CSA |
| Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Ambient air temperature for operation | -4…122 °F (-20…50 °C) |
| Relative humidity | 95 % 131 °F (55 °C) IEC 60068-2-30 |
| Vibration resistance | 0.35 mm 5…57.6 Hz)IEC 60068-2-6 1 gn 57.6…150 Hz)IEC 60255-21-1 |
| Shock resistance | 15 gn 11 ms IEC 60255-21-1 |
| IP degree of protection | IP20 IEC 60529 terminals) IP30 IEC 60529 casing) |
| Pollution degree | 3 IEC 60664-1 |
| Dielectric test voltage | 2 kV AC 50 Hz, 1 min IEC 60255-5 2 kV AC 50 Hz, 1 min IEC 60664-1 |
| Non-dissipating shock wave | 4 kV IEC 60255-5 4 kV IEC 60664-1 4 kV IEC 61000-4-5 |
| Category | US10CP222380 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 3389119405225 |
| Returnability | Yes |
| Country of origin | CA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.772 in (4.500 cm) |
| Package 1 Width | 3.150 in (8.000 cm) |
| Package 1 Length | 3.740 in (9.500 cm) |
| Package 1 Weight | 4.797 oz (136.000 g) |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 48 |
| Package 2 Height | 11.811 in (30.000 cm) |
| Package 2 Width | 11.811 in (30.000 cm) |
| Package 2 Length | 15.748 in (40.000 cm) |
| Package 2 Weight | 16.074 lb(US) (7.291 kg) |
