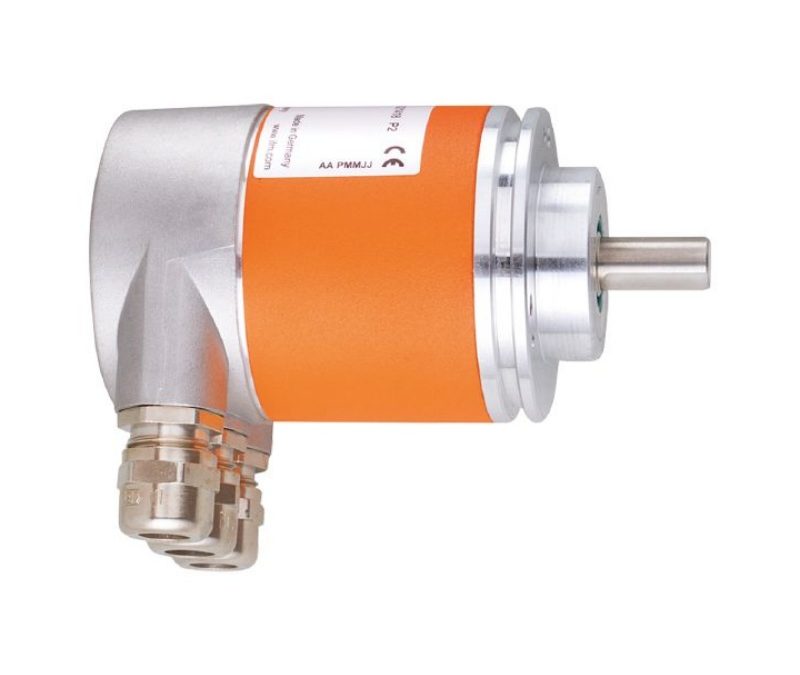

RM3007 IFM Absolute multiturn encoder with solid shaft
Model: RM3007 IFM Absolute multiturn encoder with solid shaft
Product characteristics Re…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Product characteristics
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|---|
| Communication interface | PROFIBUS DP |
| Shaft design | solid shaft |
| Shaft diameter [mm] | 10 |
Application
| Function principle | absolute |
|---|---|
| Revolution type | multiturn |
Electrical data
| Operating voltage [V] | 10…30 DC |
|---|---|
| Current consumption [mA] | 100; ((24 V)) |
| Reverse polarity protection | yes |
Outputs
| Code | binary |
|---|
Measuring/setting range
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|
Software / programming
| Parameter setting options | counting direction of the code values; Resolution; Zero point; limit switches HI and LO; motion indicator; separation multiturn/singleturn |
|---|---|
| Diagnostic functions | alarms; warnings; status; serial number of the encoder |
| Addressing | address selector switch; 0…126 |
Interfaces
| Communication interface | PROFIBUS DP |
|---|
PROFIBUS DP
| Transmission standard | DPV2 |
|---|
Operating conditions
| Ambient temperature [°C] | -40…85 |
|---|---|
| Max. relative air humidity [%] | 98 |
| Protection | IP 67; (on the housing: IP 67; on the shaft: IP 67) |
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
||
| MTTF [years] | 13.5 |
Mechanical data
| Weight [g] | 596 | |
|---|---|---|
| Dimensions [mm] | Ø 58 / L = 110 | |
| Material | aluminum | |
| Max. revolution, mechanical [U/min] | 12000 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 10 | |
| Shaft material |
|
|
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 110 | |
| Fixing flange | Clamping flange |
