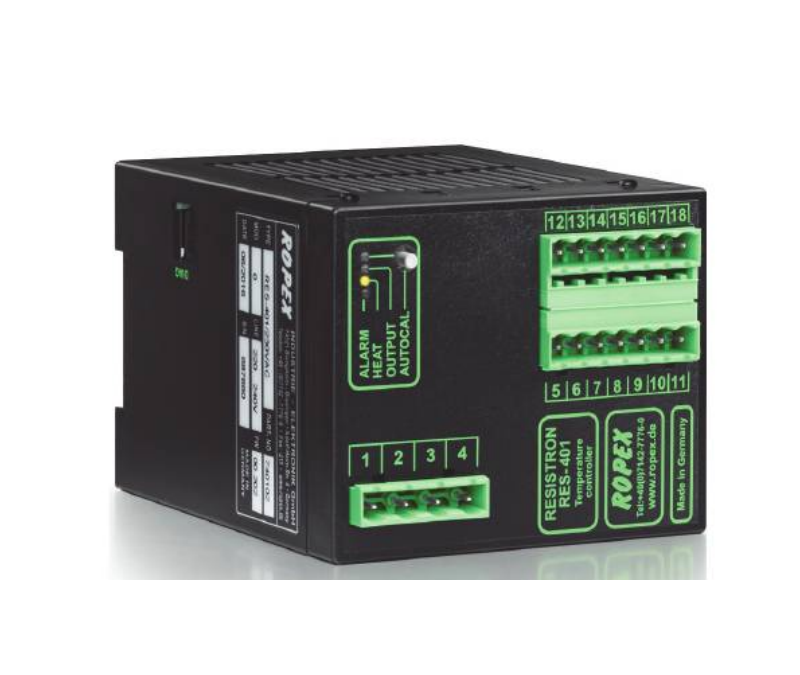

RES-406/400VAC 740603 ROPEX Temperature Controller

Modern packaging has to meet increasingly high quality and visual requirements. Ever faster cycle rates must be reconciled with the thinner and hence more sensitive film types which are in use today. This makes it even more difficult to guarantee a repeatable sealing process.

The “RESISTRON sealing system” developed by ROPEX is a complete system configuration comprised of several application-specific components. The two most important of these components are the RES temperature controller and the RES sealing tool. The RES sealing tool is a heat sealing bar with a heat sealing band and a matching counter bar which are tailored to your individual sealing application. By combining it with the system components, you obtain a customized system configuration.

Standard functions:

• Automatic zero calibration (AUTOCAL)
• Automatic optimization (AUTOTUNE)
• Automatic phase angle compensation (AUTOCOMP)
• Automatic frequency adjustment
• Automatic configuration of the secondary voltage and current ranges (AUTORANGE)
• Diagnostic tool (CI-USB-1)

Features:

• PROFIBUS-DP interface for controlling all controller functions
• Heat sealing band alloy and temperature range (max. 500 °C) selectable
• µC-Technology
• Automatic zero calibration (AUTOCAL)
• Automatic optimization (AUTOTUNE)
• Automatic frequency adjustment
• Large current and voltage range
• Fault output and indication (LED) with error diagnostics
• Booster output terminal (MOD 26) as standard
• 0…10VDC analog output for ACTUAL temperature
• Automatic configuration of secondary voltage and current ranges (AUTORANGE, as of February 2006)
• Automatic phase angle compensation (AUTOCOMP, as of February 2006)
• Selectable heatseal band alloy (A20 (Alloy-20), A20L, Low-Ex)
