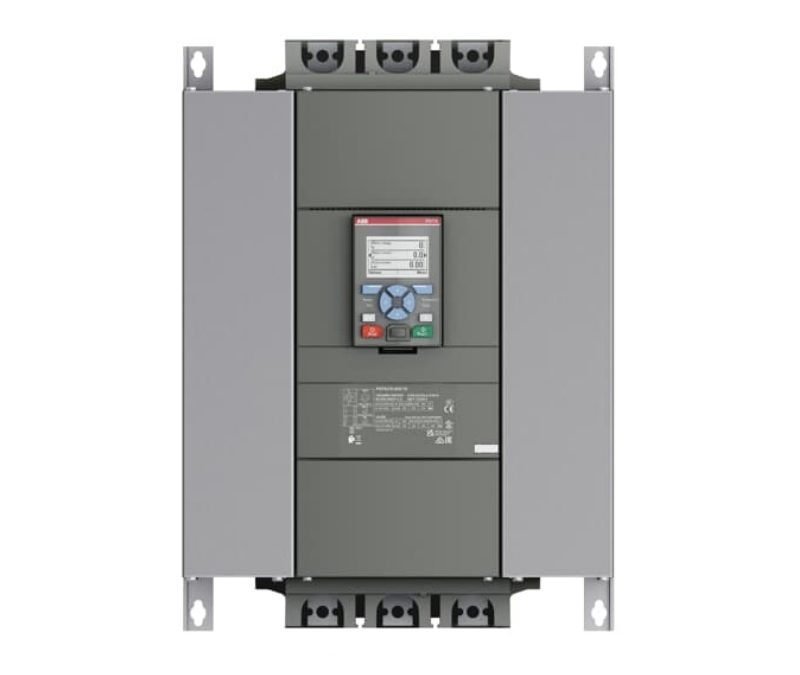

PSTX720-600-70 ABB Softstarter
Model: PSTX720-600-70 ABB Softstarter
Product Net Width: 435 mm …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Product Net Width:
435 mm
Product Net Height:
493 mm
Product Net Depth / Length:
369 mm
Product Net Weight:
46.5 kg
Technical
Rated Operational Voltage:
208 … 600 V AC
Rated Control Supply Voltage (Us):
100 … 250 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power – In-Line Connection (Pe):
(230 V) 200 kW
(400 V) 400 kW
(500 V) 500 kW
Rated Operational Current – In-Line Connection (Ie):
720 A
Rated Operational Power – Inside Delta Connection:
at 230 V 355 kW
at 400 V 710 kW
at 500 V 880 kW
Rated Operational Current – Inside Delta Connection:
1247 A
Service Factor Percentage:
100 %
Overload Protection:
Built-in electronic overload protection
Integrated Electronic Overload:
Yes
Adjustable Rated Motor Current Ie:
30 … 100 %
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Protection Function:
Bypass open protection; Current imbalance protection; Current underload protection; Dual overload (separate overload for start and run); Earth fault protection / ground fault protection; Electronic overload protection, EOL; Extension IO failure protection; Fieldbus failure protection; HMI failure protection; Locked rotor protection; Max number of starts/hour; Over voltage protection; Phase reversal protection; Power factor underload protection; PT-100 connection; PTC connection; Too long current limit protection; Too long start time protection; Under voltage protection; User defined protection; Voltage imbalance protection
Warning Details:
Current imbalance warning; Current underload warning; Electronic overload Time-to-trip; EOL warning; Faulty fan warning; Locked rotor warning; Motor runtime limit warning; Over voltage warning; Phase loss warning (for standby); Power factor underload warning; Short circuit warning (for Limp mode); THD(U) – Total Harmonic Distortion warning; Thyristor overload warning (SCR); Under voltage warning; Voltage imbalance warning
