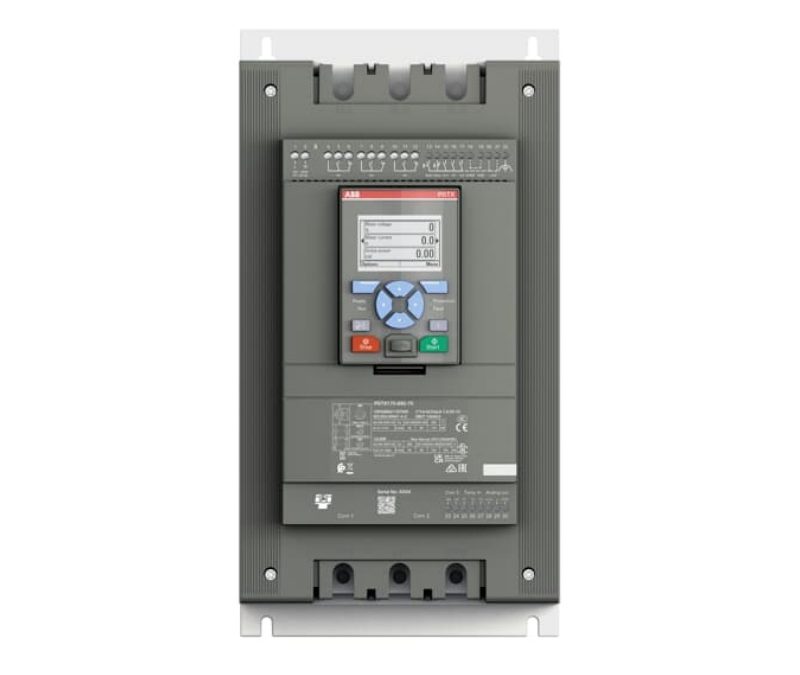

PSTX105-690-70 ABB soft starter
Model: PSTX105-690-70 ABB soft starter
Product Net Width: 150 mm …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Product Net Width:
150 mm
Product Net Height:
314 mm
Product Net Depth / Length:
198 mm
Product Net Weight:
4.7 kg
Technical
Rated Operational Voltage:
208 … 690 V AC
Rated Control Supply Voltage (Us):
100 … 250 V AC
Rated Control Circuit Voltage (Uc):
24 V DC
Rated Frequency (f):
50/60 Hz
Main Circuit 50 / 60 Hz
Rated Operational Power – In-Line Connection (Pe):
(230 V) 30 kW
(400 V) 55 kW
(500 V) 75 kW
(690 V) 90 kW
Rated Operational Current – In-Line Connection (Ie):
105 A
Rated Operational Power – Inside Delta Connection:
at 230 V 55 kW
at 400 V 90 kW
at 500 V 110 kW
at 690 V 160 kW
Rated Operational Current – Inside Delta Connection:
181 A
Service Factor Percentage:
100 %
Overload Protection:
Built-in electronic overload protection
Integrated Electronic Overload:
Yes
Adjustable Rated Motor Current Ie:
30 … 100 %
Starting Capacity at Maximum Rated Current Ie:
4xIe for 10s
Ramp Time:
1 … 120 second [unit of time]
Initial Voltage During Start:
10 … 99 %
Step Down Voltage Special Ramp:
100 … 10 %
