ProSoft Technology MVI56E-MNET Modbus TCP/IP Communication Module

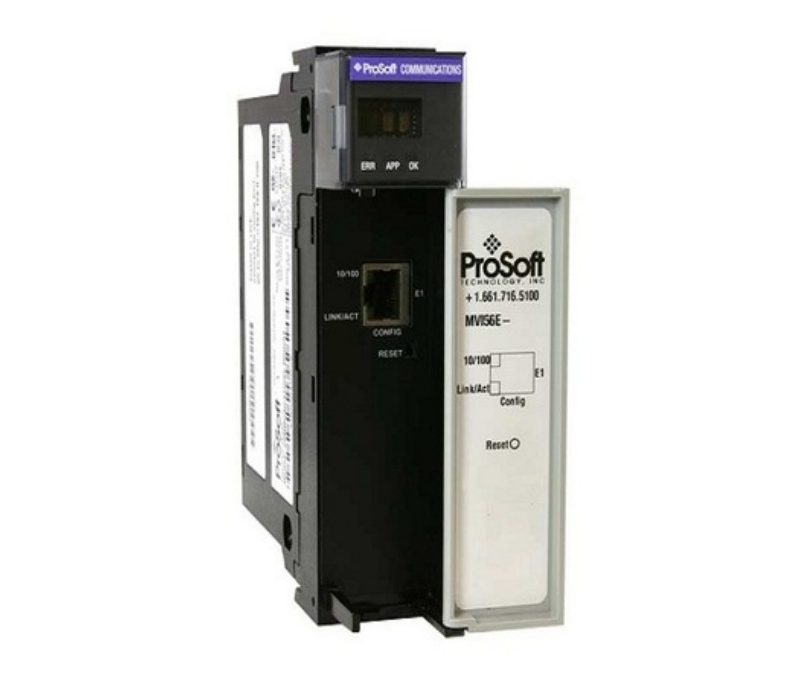

Model: ProSoft Technology MVI56E-MNET Modbus TCP/IP Communication Module
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | MVI56E-MNET |
| Brand | ProSoft Technology |
| Product Type | Modbus TCP/IP Client/Server Enhanced Communication Module |
| Compatibility | Rockwell Automation ControlLogix processors; 1756 ControlLogix single-slot backplane |
| Core Function | Enables ControlLogix to interface with Modbus TCP/IP-compatible PACs and instruments |
| Backward Compatibility | Yes, compatible with earlier MVI56-MNET modules (no ladder logic rework needed) |
| Network Interface | 10/100 Mbps Ethernet port (RJ45, CAT5 cable), auto-crossover detection |
| Data Memory Capacity | Up to 5000 16-bit user-definable registers; supports bit/register-level data & floating-point formats |
| Modbus TCP/IP Server (Slave) | 10 connections (Port 502, MBAP); 10 connections (Port 2000, Encapsulated); supports Function Codes 1,2,3,4,5,6,8,15,16,17,22,23 |
| Modbus TCP/IP Client (Master) | 1 connection (up to 100 commands); transmits Function Codes 1,2,3,4,5,6,7,15,16; supports Command Control & Event Commands |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Environmental Resistance | Relative Humidity: 5%-95% (non-condensing); Vibration: 5 g (10-150 Hz); Shock: 30 g (operational), 50 g (non-operational) |
| Status Indication | 4-character alpha-numeric scrolling LED display; Link and Activity LEDs |
| Configuration Tools | ProSoft Configuration Builder (PCB); ProSoft Discovery Service (PDS) for IP assignment |
| Key Features | CIPconnect-enabled; sample ladder logic & AOI for RSLogix 5000; supports Compact Flash (CF) card for configuration storage |
| Certifications | RoHS, ATEX, CSA, CE, CSA CB Safety, cULus, GOST-R, Lloyds |
| Installation Accessory | Included 5-foot Ethernet straight-through cable |
| Functional Advantage | Appears as I/O module to ControlLogix; optimizes data throughput with large I/O image blocks |
