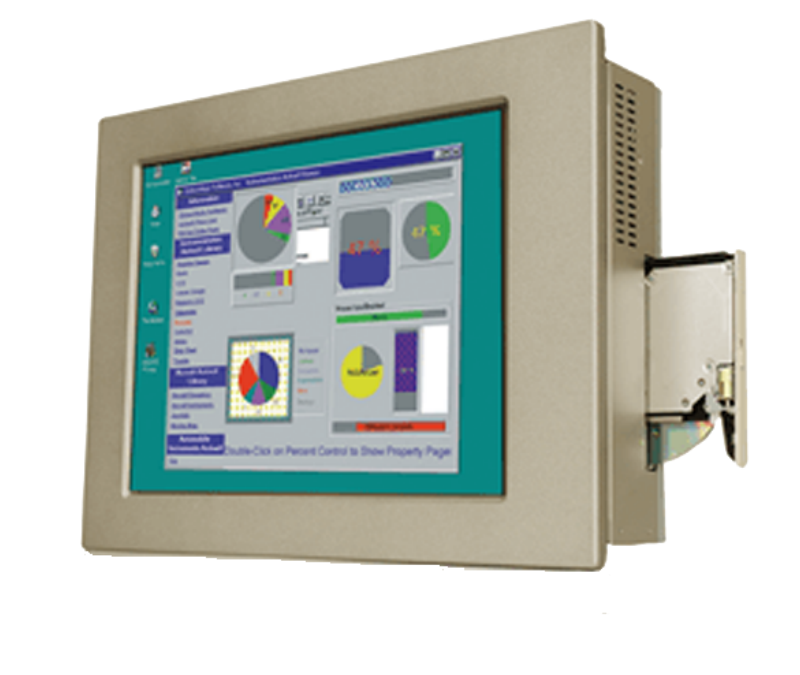

PPC-5190A-H61 IEI Panel PC
Model: PPC-5190A-H61 IEI Panel PC
Hardware Spec. Display Bac…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Hardware Spec.
| Display | |
|---|---|
| Backlight MTBF(hrs) | 50,000 |
| Brightness(cd/m2) | 350 |
| Contrast Ratio | 1000 : 1 |
| LCD Size | 19″ |
| Max Resolution | 1280(W) x 1024(H) |
| Environment | |
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Expansion Slots | |
| Expansion Slots | Either 1 x PCI slot or 1 x PCIe slot 1 x PCIe Mini card |
| Other Features | |
| System Cooling | Active with Fan |
| Physical Characteristics | |
| Cutout Dimensions | 450 x 363 |
| Dimensions (LxWxH) (mm) | 482 x 399 x 115 |
| System | |
| Chipset | Intel® H61 |
| CPU | 2nd/3rd generation Intel® Core™ i7/ i5/ i3, Pentium® and Celeron® processor, up to TDP 65W |
| HDD | 1 x 2.5” SATA HDD bay with anti-shook |
| SSD | SSD CF Type II, mSATA (SATA2 signal) |
| Weight | |
| Weight | 12.6 kg / 18.2 kg |
| I/O Interface | |
| I/O Interface | 1 x Line in |
| 4 x LAN((RJ-45) x 2/SFP fiber LAN x 2) | |
| 1 x AT/ATX Switch | |
| 1 x VGA | |
| 2 x USB3.0 | |
| 4 x USB2.0 | |
| 1 x RS-422/485 | |
| 1 x Line out | |
| 1 x Power Switch | |
| 4 x RS-232 | |
