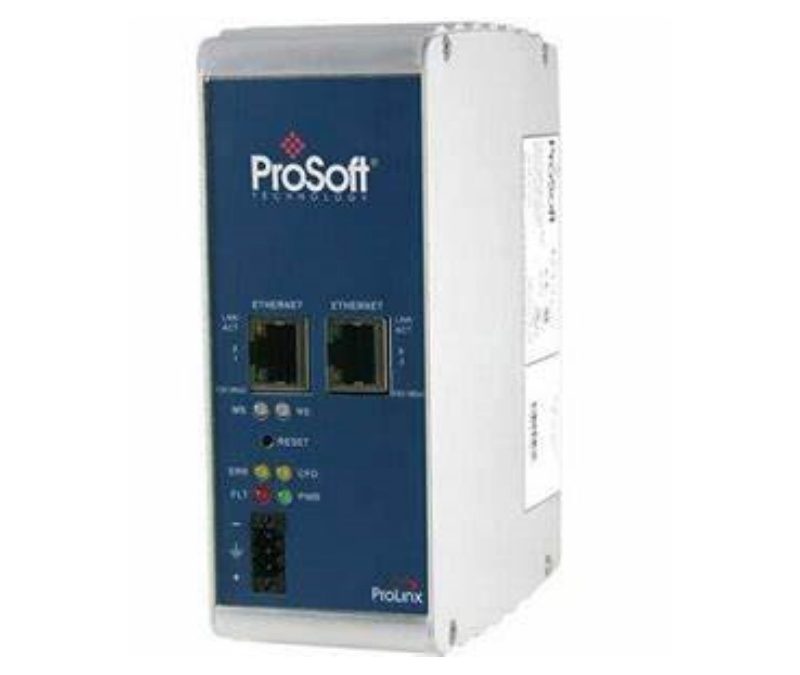

PLX82-EIP-PNC ProSoft Communication Gateway

Specification Description
Class 3 Server Connections 5
Supported PLC Types PLC2, PLC5, SLC, CLX, CMPLX
Class 3 Client Connections Connected: 2
Unconnected: 1
Class 1 I/O Connections 20
Supported PLC Types PLC2, PLC5, SLC, CLX, CMPLX
Max I/O connection size In/Out 248/248
Min RPI time 2 ms (1 connection)
8 ms (8 connections)
CIP Services Supported 0x4C – CIP Data Table Read
0x4D – CIP Data Table Write
Command List Support for 100 commands per Client, each
configurable for command type, IP address,
register to/from addressing and word/bit count.
PROFINET Specifications
Specification Description
Driver Type Class 1 RTC, Class 1 RTA
PROFINET I/O Data 3840 bytes IN, 3840 bytes OUT
Exchange Types Cyclic Real-time (RT) and Acyclic Data
PROFINET Devices Max: 36 | Max data per device: 1440 bytes in/out
Hardware Specifications
Specification Description
Power Supply 24 VDC nominal
10 to 36 VDC allowed
Positive, Negative, GND Terminals
Current Load 24 VDC nominal @ 400mA
10 to 36 VDC @ 610mA maximum
Operating Temperature 0° to 50°C (32° to 122°F )
Storage Temperature -10° to 70°C (-14° to 158°F )
Relative Humidity 5% to 95% RH with no condensation
Shock Operational: IEC 60068-2-27; 15G @ 11ms, 3-Axis
Non-Operational: IEC 60068-2-27; 30G @ 18ms,
3-Axis
Vibration IEC 60068-2-6; 5G @ 10 to 150 Hz
Dimensions
(H x W x D)
5.52 x 2.06 x 4.37 in
14.01 x 5.24 x 11.09 cm
Ethernet Port 10/100Mbit RJ45 Connector Electrical Isolation
1500 Vrms at 50 to 60 Hz for 60 seconds.
Shipped With Each Unit 2.5 mm screwdriver, J180 Power Connector
