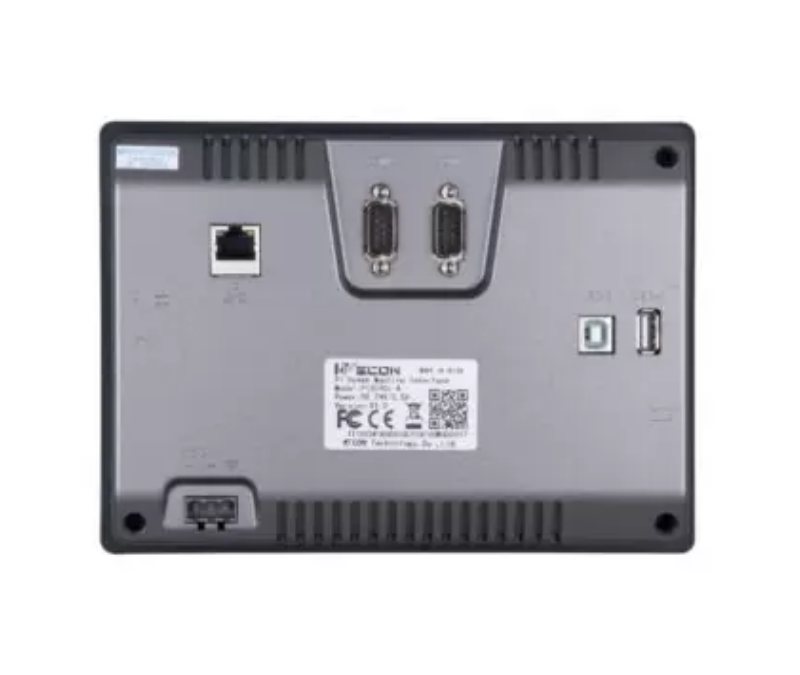

PI3102i HMI Programmable operator panel
Model: PI3102i HMI Programmable operator panel
Model PI3102i-2S Basic OS …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Model | PI3102i-2S | |
| Basic | OS | Linux 4.9.11 based on QT |
| CPU | Cortex A7 528 MHz | |
| Display | Size | 10.2 inches |
| Screen | TFT | |
| Permission | 1024*600 | |
| Color | 16,000 thousand flowers | |
| Brightness (cd/m2) | 350 | |
| Backlight | VEL | |
| Backlight life | 50,000 hours | |
| Touchpad | High precision four-wire resistive | |
| Memory | Memory | 128 MB |
| Flash memory | 128 MB | |
| SD card slot | YES | |
| USB port | USB2.0 Host + USB2.0 Client |
|
| RTC | Real time clock | YES |
| Calendar | YES | |
| I/O port | COM1 | RS 232, RS 422/ RS 485 |
| COM2 | RS 232, RS 485 | |
| COM3 | RS 485 | |
| Ethernet | х1 | |
| CANopen | — | |
| Wi-Fi | — | |
| 4G LTE | — | |
| Power | Rated power | < 10 W |
| Supply voltage | 24 VDC | |
| Input range | 12~28V DC | |
| Саse | Case color | Grey |
| Housing material | Plastic+ABS (polycarbonate) |
|
| Overall size (mm) | 200.0 D*146.0 V*36.5 D | |
| Installation size (mm) | 192 D * 138 H | |
| Installation method | Panel mount | |
| Weight,( kg) | 1,31 | |
| Environment | Working temperature | -10 ~ 55°С |
| Storage temperature | -20 ~ 70°С | |
| Humidity | 10 ~ 85% RH (no condensation) |
|
| Vibration resistance | 10~25Hz (directions X, Y, Z 2G/30 minutes) |
|
| Cooling | Air cooling | |
| Software | Programming | PIStudio |
| Data Tool | YES | |
| Email alert | UD | |
| IP camera | — | |
| Data reliability | — | |
| MQTT | — | |
| Local network monitoring | — | |
| Lua Script | YES | |
| Certificates | IP code | IP65 (front panel) |
| CE | CE marking | |
| FCC | FCC Class A |
