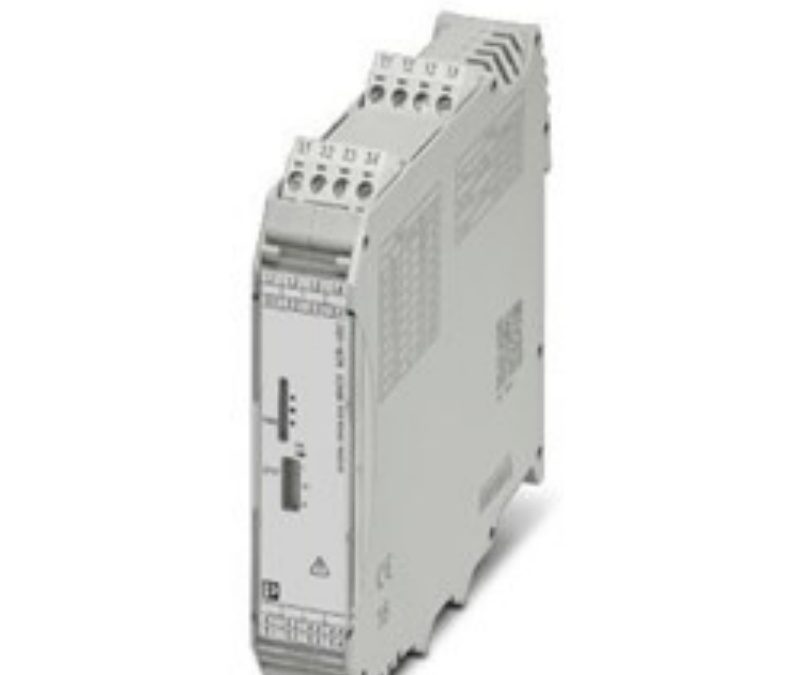

PHOENIX2906242 Phoenix Contact Voltage measuring transducers

OTHER OTHER

Model: PHOENIX2906242 Phoenix Contact Voltage measuring transducers

Tech Specifications Utiliz…

Specifications & Service

Utilization restriction	EMC: class A product, see manufacturer’s declaration in the download area
Width	22.5 mm
Height	99 mm
Depth	114.5 mm
Ambient temperature (operation)	-25 ??C … 60 ??C
Ambient temperature (storage/transport)	-40 ??C … 85 ??C (non-condensing)
Maximum altitude	= 2000 m
Degree of protection	IP20
Input voltage range	-550 V DC … 550 V DC
Input resistance	5500 kO

Voltage Output Signal	-10 V … 10 V
Max. output voltage	= 11 V
Load/output load voltage output	> 10 kO
Ripple	50 mV
Output name	Current output
Current Output Signal	-20 mA … 20 mA
Max. output current	= 22 mA
Load/output load current output	< 500 O
Nominal supply voltage	24 V DC (-20 % … +25 %)
Supply voltage range	19.2 V DC … 30 V DC
Max. current consumption	< 60 mA
Connection Method	Pluggable screw connection
Conductor cross section solid min.	0.2 mm2
Conductor cross section solid max.	2.5 mm2
Conductor cross section AWG min.	24
Conductor cross section AWG max.	14
Conductor cross section flexible min.	0.2 mm2
Conductor cross section flexible max.	2.5 mm2
Stripping length	8 mm
Screw thread	M3
Connection technology	Screw connection
Maximum transmission error	< 1 % (of measuring range end value)
Maximum temperature coefficient	< 0.015 %/K
Alignment zero	?? 20 %
Alignment span	?? 20 %
Step response (10-90%)	< 16 ms
Test voltage	5.3 kV AC (50 Hz, 1 min.)
Degree of pollution	2
Rated insulation voltage	300 V DC
