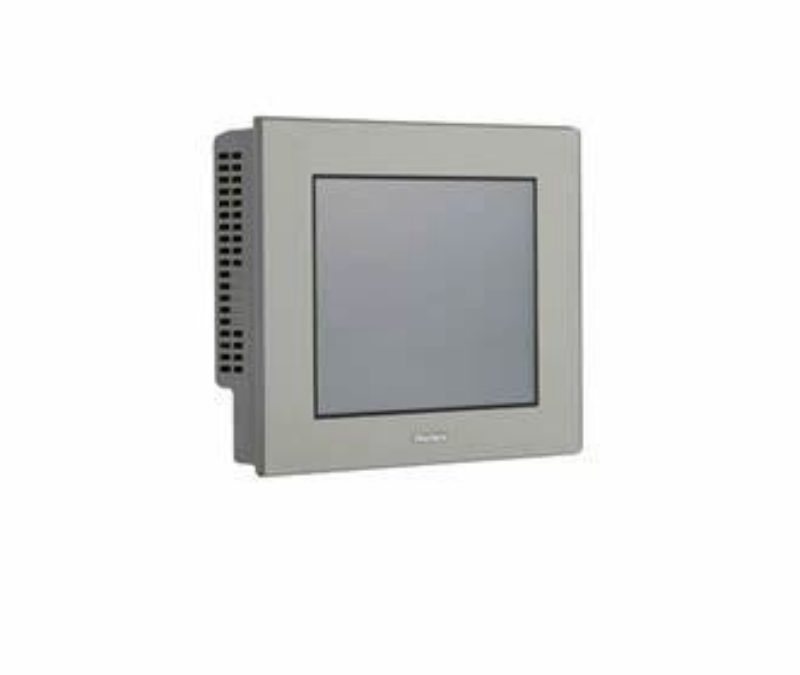

PFXGP4601TADC Pro-face Touch Screen
Model: PFXGP4601TADC Pro-face Touch Screen
Functional Specifications …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Functional Specifications
| Display Type |
TFT Color LCD
|
|---|---|
| Display Size |
12.1″
|
| Resolution |
800 x 600 pixels (SVGA)
|
| Effective Display Area |
W246.0 x H184.5 mm [W9.69 x H7.26 in.]
|
| Display Colors |
65,536 Colors (No blink)/16,384 Colors (Blink)
|
| Backlight |
White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
|
| Brightness Control |
16 Levels (Adjusted with the touch panel or the software)
|
| Backlight Service Life |
50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
|
| Language Fonts |
Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
|
| Character Sizes |
Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
|
| Font Sizes |
Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.
|
| 8 x 16 dots |
100 char. x 37 rows
|
| 16 x 16 dots |
50 char. x 37 rows
|
| 32 x 32 dots |
25 char. x 18 rows
|
| 8 x 8 dots |
100 char. x 75 rows
|
| Program Area |
FLASH EPROM 132 KB (Equivalent to 15,000 steps)*1
|
| Variable Area |
SRAM 64 KB (Replaceable Lithium battery for backup memory)
|
| Application Memory |
FLASH EPROM 32 MB (including a logic program area)
|
| Data Backup |
SRAM 320 KB (Replaceable Lithium battery for backup memory)
|
| Clock Accuracy |
±65 sec/month (deviation at room temperature and power is OFF)*2
|
| Touch Panel Type |
Resistive Film (analog)
|
| Touch Panel Resolution |
1,024 x 1,024
|
| Touch Panel Service Life |
1,000,000 times or more
|
| Serial (COM1) |
RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
|
| Serial (COM2) |
RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)
|
| Ethernet (LAN) |
IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
|
| USB (TYPE-A) |
Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
|
| USB (mini-B) |
Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
|
| SD Card |
SD Card Slot x 1
|
