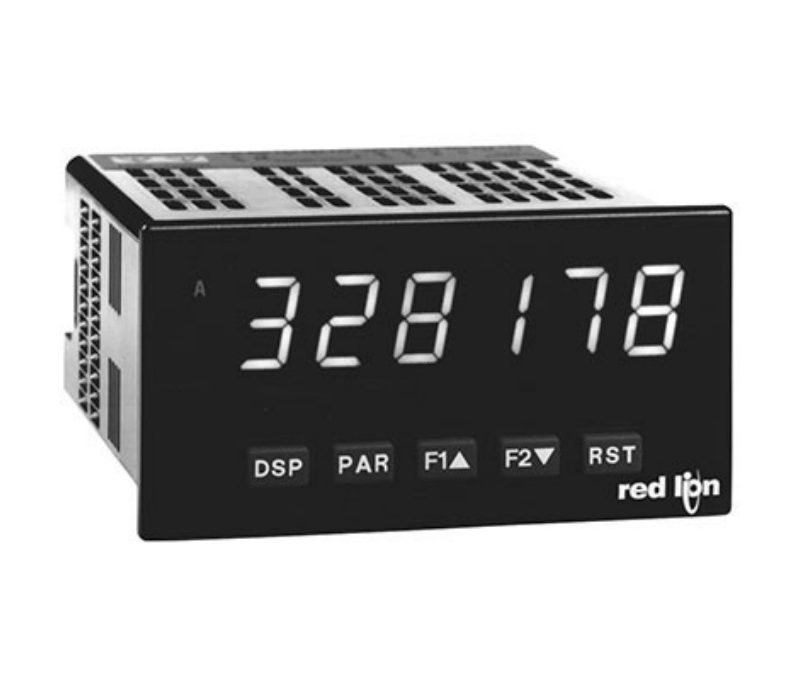

PAXI0020 Red Lion Dual Counter/Rate Meter Red Display AC Powered
Model: PAXI0020 Red Lion Dual Counter/Rate Meter Red Display AC Powered
Manufacturer Part Number P…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Manufacturer Part Number | PAXI0020 |
|---|---|
| Manufacturer | Red Lion |
| Product Series | PAXI |
| Family Series | Red Lion Counters, PAXI Series |
| Description | Counter/Rate Meter, 85-250VAC Power, N4X, 1/8 DIN, Sunlight Visible Red LED Display |
| Nominal Supply Voltage | 120 VAC, 208 VAC, 240 VAC |
| Supply Voltage | 85-250 VAC |
| Sensor Power | 12 VDC |
| Display | LED – 1 Line, Red |
| Number of Digits | 6 |
| Number of Presets | 2 |
| Batch Counting | No |
| Backlight | Yes |
| Count Mode | Bidirectional, Quadrature, Ratemeter, Unidirectional |
| Count Speed (Hz) | 34,000 Hz |
| Input Type | Sinking (NPN)/Sourcing (PNP)/Magnetic/Contact Closure/TTL |
| Output Type | Optional Output Cards |
| Scale Calibrator | 0.00001-9.99999 Multiplier |
| Communications | Optional Communication Cards |
| Reset | Auto, Electric, Front Panel |
| Lockout | Yes |
| Memory | Nonvolatile RAM |
| Mounting | DIN – 1/8 |
| Termination | Screw Terminals |
| NEMA Rating | NEMA 4X |
| IP Rating | IP65 |
| Temp Range (C) | 0-50 °C |
| Approvals | CE, cUL, UL |
| Net Weight | 0.48 lbs |
| Gross Weight | 0.9 lbs |
