Schneider

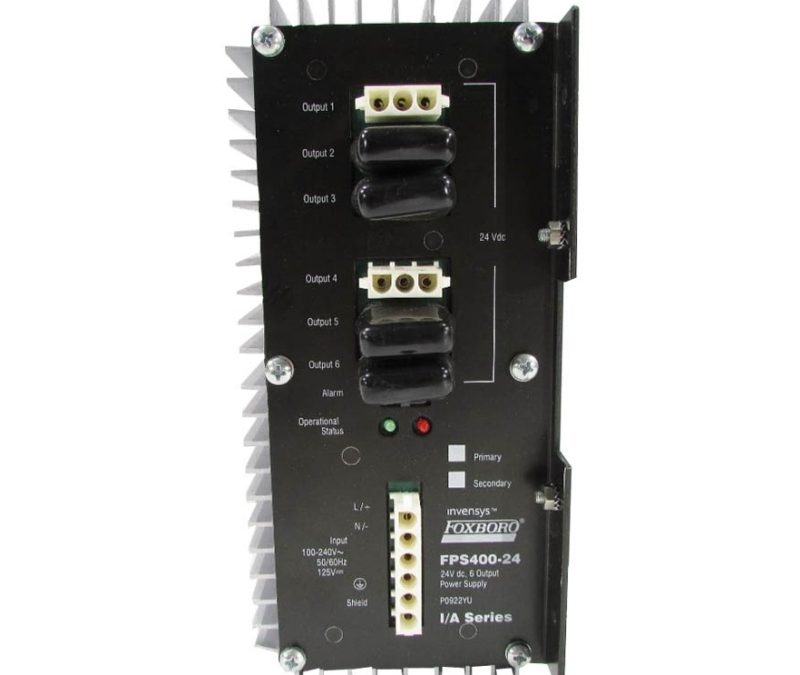

P0922YU Schneider Power Supply
Model: P0922YU Schneider Power Supply
Foxboro ( by Schneider Ele…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
- Foxboro ( by Schneider Electric )
- Product No. : P0922YU
- Model : Power Supply
- Input Voltage Range : 85 to 265 V ac or 108 to 145 V dc, 125 V dc nominal
- Input Frequency Range : 47 to 63 Hz
- Input Current : 5.6 A at 85 V ac input (RMS maximum), 2.5 A at 230 V ac input (RMS maximum)
- Output Voltage : 24.0 V dc, ±0.2 V dc nominal factory setting
- Voltage line regulation : 2.0% of Vout
- Over Current Protection : Current limiting to 110% of maximum at the rated 25?C load
- Leakage current : ac line to chassis ground is less that 1.6 mA when operated at 250 V ac (47 to 63 Hz) or lower voltages
- Vibration : 0.75 g (5 to 500 Hz)
- Operating temperature : –30 to 71°C (–58 to +160°F)
- Operating relative humidity : 5 to 95% (noncondensing)
- Operating altitude : –300 to +3,000 m (–1,000 to +10,000 ft)
- Dimensions (HxWxD), approx : 17.8cm x 10.7cm x 21.5cm
- Shipping Weight : 6 Kg
