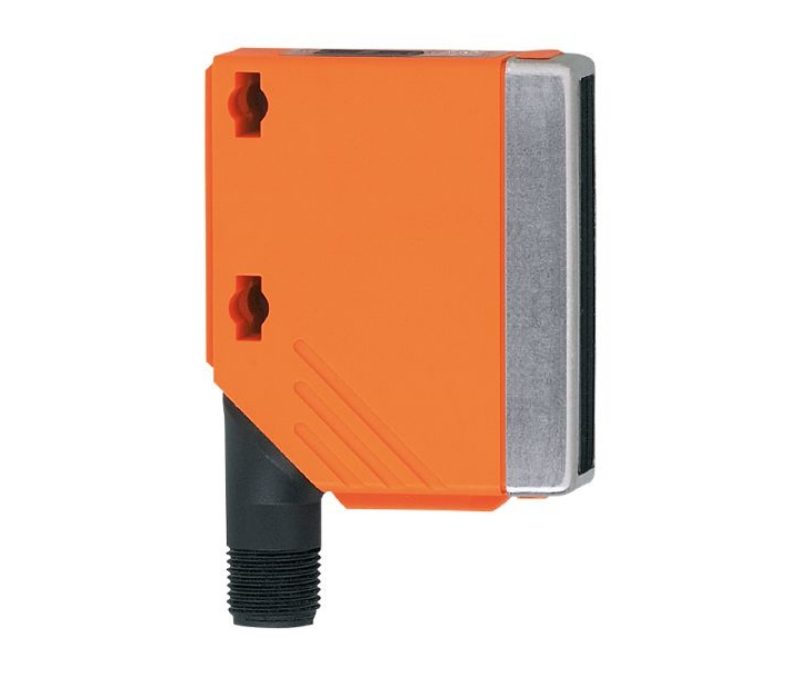

O5D150 IFM Laser distance sensor
Model: O5D150 IFM Laser distance sensor
Product characteristics Ty…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Product characteristics
| Type of light | red light |
|---|---|
| Laser protection class | 1 |
| Housing | rectangular |
Application
| System | Background suppression |
|---|
Electrical data
| Operating voltage [V] | 10…30 DC; (cULus – Class 2 source required) |
|---|---|
| Current consumption [mA] | 75; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 650 |
| Typ. lifetime [h] | 50000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (complementary) |
| Max. current load per output [mA] | 100 |
| Switching frequency DC [Hz] | 11 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Mechanical data
| Weight [g] | 61 |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 56 x 18.2 x 46.8 |
| Material | housing: PA; Front framework: stainless steel; operator interface: TPU (urethane); lens: PMMA |
| Lens alignment | Side sensing |
