Omron

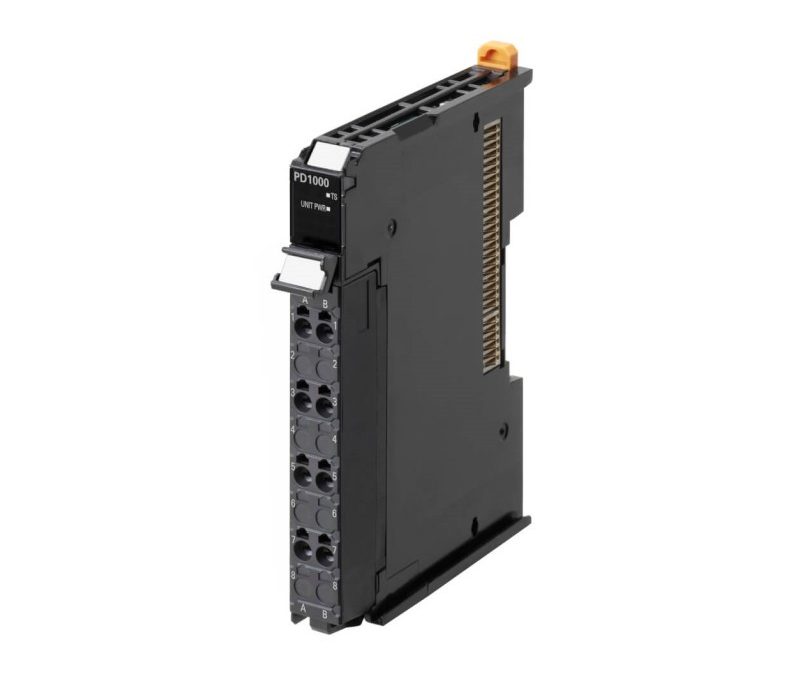

NX-PD1000 Omron Additional NX Unit Power Supply Unit
Model: NX-PD1000 Omron Additional NX Unit Power Supply Unit
Manufacturers OMRON Produc…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
OMRON
Product Description
- External connection
- terminals : Screwless push-in terminal block (8 terminals)
- Power supply voltage : 24 VDC (20.4 to 28.8 VDC)
- NX Bus power supply
- capacity : 10 W max. (Refer to Installation orientation and restrictions for details.)
- NX Unit power supply
- efficiency : 70%
- Unwired terminal
- current capacity : 4 A max. (Including the current of through-wiring)
- Isolation method : No-isolation
- Insulation resistance : 20 M? min. between isolated circuits (at 100 VDC)
- Dielectric strength : 510 VAC between isolated circuits for 1 minute at a leakage current of 5 mA max.
- NX Unit power consumption :
- -Connected to a CPU Unit or Communication Control Unit 0.85 W max.
- – Connected to a Communications Coupler Unit 0.45 W max.
- I/O current
- consumption : No consumption”
- Dimensions(LxWxH)：8cm x 1.2cm x 10.45cm
- Weight:0.065kg
- Country of origin: Japan
