Omron

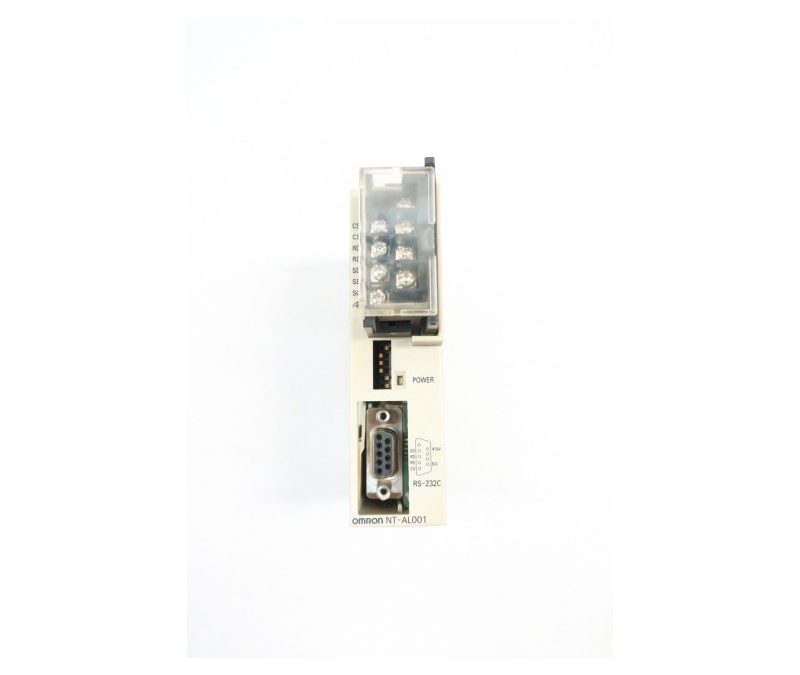

NT-AL001 Omron Link Adaptor
Model: NT-AL001 Omron Link Adaptor
Manufacturers OMRON Produc…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
OMRON
Product Description
- Ambient operating temperature 0 to 55°C
- Ambient operating humidity 10% to 90% (with no condensation)
- Rated power supply voltage +5 V ±10% (supplied from pin 6 of RS-232C connector)
- Rated power supply current 150 mA max.
- Surge current 0.8 mA max.
- Insulation resistance 20 MΩ min. (at 500 V DC) between RS-422A signal
- lines and functional ground terminal
- Dielectric strength 1,500 V AC between RS-422A signal lines and functional
- ground terminal for 1 min, leakage current: 10 mA max.
- Operating environment No corrosive gases
- Ambient storage temperature -20 to 75°C
- Vibration resistance Conforms to JISC 0911, 80 min each in X, Y, and Z directions
- Shock resistance Conforms to JISC 0912, 15G for 3 times each in X, Y,and Z directions
- Dimensions(LxWxH)：10.2 cm x 12.7 cm x 5.1 cm
- weight：0.1kg
- Country of origin: Japan
