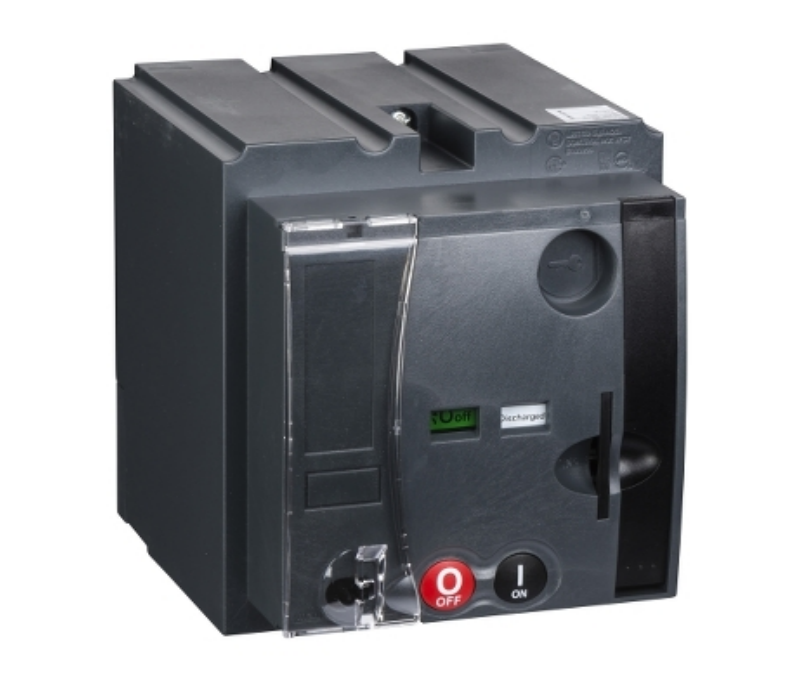

NSX400-630 Schneider Circuit Breaker
Model: NSX400-630 Schneider Circuit Breaker
Main Device short name MT4…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Device short name | MT400/630 |
|---|---|
| Product or Component Type | Motor mechanism |
| Device Application | Automatic spring charging |
| Range compatibility | ComPacT new generation NSX400 ComPacT new generation NSX630 ComPacT new generation NSX400 DC ComPacT new generation NSX630 DC |
| Control Type | Standard |
| [Uc] control circuit voltage | 110…130 V AC 50/60 Hz |
| circuit breaker mounting mode | Fixed |
| circuit breaker frame rated current | 630 A 400 A |
| Control signal type | Impulse Maintained |
|---|---|
| circuit breaker response time | < 700 ms open < 80 ms closed |
| Maximum operating frequency | 4 per minute |
| Maximum power consumption in VA | 500 VA closing 500 VA opening |
| Locking options description | Padlocking in OFF position 1 to 3 padlocks Ø 5 to Ø 8 |
| Category | US10NET01081 |
|---|---|
| Discount Schedule | 0NET |
| GTIN | 3606480020162 |
| Returnability | No |
| Country of origin | IT |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.7 in (17.0 cm) |
| Package 1 Width | 6.7 in (17.0 cm) |
| Package 1 Length | 7.7 in (19.5 cm) |
| Package 1 Weight | 6.975 lb(US) (3.164 kg) |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 11.8 in (30.0 cm) |
| Package 2 Width | 15.7 in (40.0 cm) |
| Package 2 Length | 23.6 in (60.0 cm) |
| Package 2 Weight | 43.647 lb(US) (19.798 kg) |
