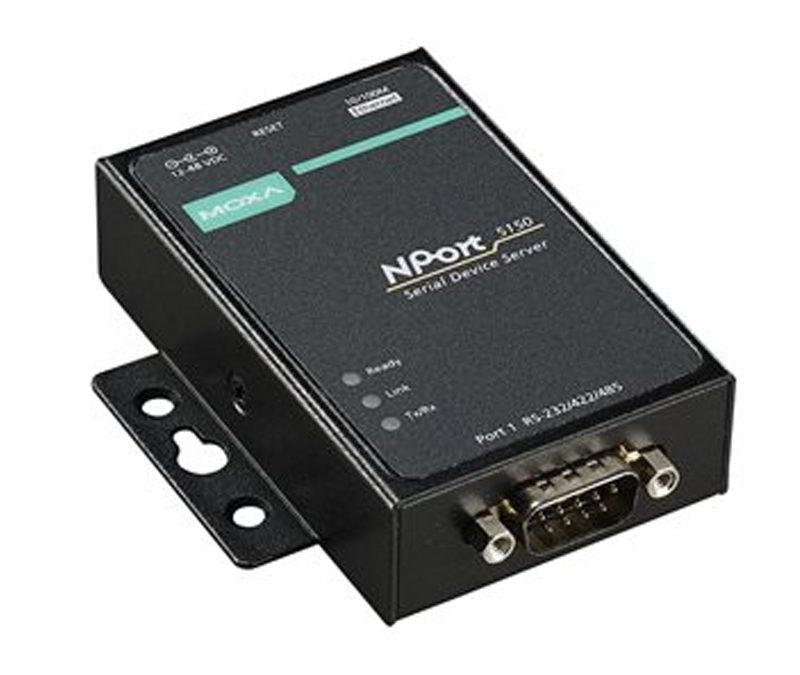

NPORT 5150 MOXA General Device Servers

Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
1
Magnetic Isolation Protection
1.5 kV (built-in)
Ethernet Software Features
Configuration Options
Serial Console
Windows Utility
Telnet Console
Web Console (HTTP)
Management
DHCP Client
IPv4
SMTP
SNMPv1
Telnet
DNS
HTTP
ARP
BOOTP
UDP
TCP/IP
ICMP
Windows Real COM Drivers
Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003
Windows Embedded CE 6.0/5.0, Windows XP Embedded
Linux Real TTY Drivers
Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
Fixed TTY Drivers
macOS Versions: 11.x, 10.12 to 10.15

SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Arm®-based Platform Support
Linux Kernel 5.x/4.x
Virtual Machine
VMWare ESXi (Windows 11/10)
VMware Fusion (Windows on macOS 10.12 to 11.x)
Parallels Desktop (Windows on macOS 10.12 to 11.x)
Android API
Android 3.1.x and later
MIB
RFC1213, RFC1317
Security Functions
Authentication
Local database (password only)
Serial Interface
Connector
DB9 male
No. of Ports
1
Serial Standards
RS-232/422/485
Operation Modes
Disabled
Ethernet Modem
Pair Connection
Real COM
Reverse Telnet
TCP Client
TCP Server
UDP
Baudrate
50 bps to 921.6 kbps
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
RTS/CTS (RS-232 only)
DTR/DSR (RS-232 only)
XON/XOFF
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
RS-485 Data Direction Control
Automatic Data Direction Control (ADDC)
Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
Power Parameters
Input Current
200 mA @ 12 VDC
Input Voltage
12 to 48 VDC
No. of Power Inputs
1
Source of Input Power
Power input jack
Physical Characteristics
Housing
Metal
Installation
Desktop
DIN-rail mounting (with optional kit)
Wall mounting
Dimensions (with ears)
75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)
Dimensions (without ears)
52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
Weight
340 g (0.75 lb)
Environmental Limits
Operating Temperature
0 to 55°C (32 to 131°F)
Storage Temperature (package included)
-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
EMC
EN 55032/35
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
Safety
UL 60950-1
MTBF
Time
2,736,202 hrs
Standards
Telcordia (Bellcore) Standard TR/SR
Warranty
Warranty Period
5 years
Details
See www.moxa.com/warranty
