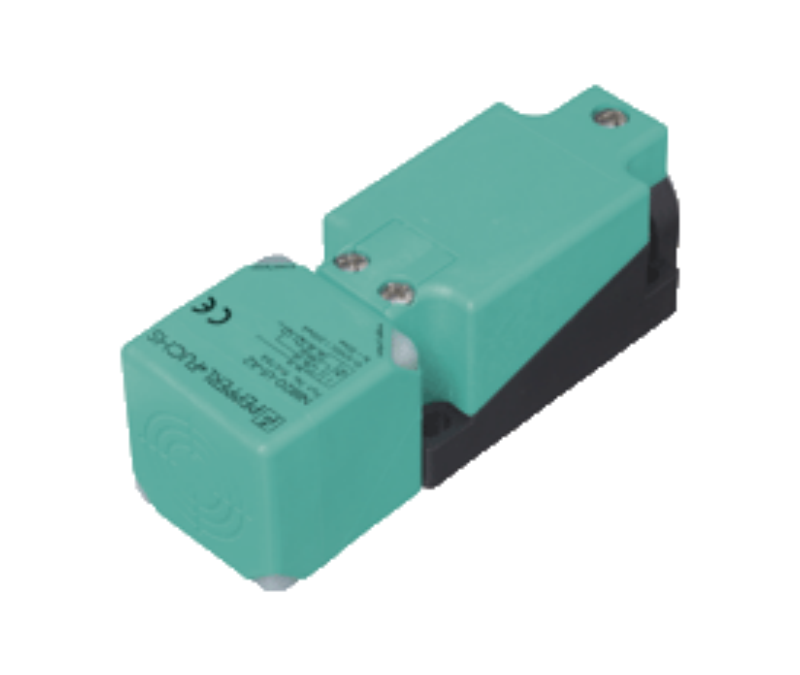

| General specifications |
| Switching function |
complementary |
| Output type |
PNP |
| Rated operating distance |
20 mm |
| Installation |
flush |
| Output polarity |
DC |
| Assured operating distance |
0 … 16.2 mm |
| Reduction factor rAl |
0.33 |
| Reduction factor rCu |
0.31 |
| Reduction factor r304 |
0.74 |
| Reduction factor rBrass |
0.38 |
| Output type |
4-wire |
| Nominal ratings |
| Operating voltage |
10 … 30 V DC |
| Switching frequency |
0 … 440 Hz |
| Hysteresis |
typ. 5 % |
| Reverse polarity protection |
reverse polarity protected |
| Short-circuit protection |
pulsing |
| Voltage drop |
?? 2 V |
| Operating current |
0 … 200 mA |
| Off-state current |
0 … 0.5 mA |
| No-load supply current |
?? 20 mA |
| Time delay before availability |
80 ms |
| Operating voltage indicator |
LED, green |
| Switching state indicator |
LED, yellow |
| Functional safety related parameters |
| MTTFd |
1289 a |
| Mission Time (TM) |
20 a |
| Diagnostic Coverage (DC) |
0 % |
| Compliance with standards and directives |
| Standard conformity |
|
|
Standards |
EN IEC 60947-5-2 |
| Approvals and certificates |
| UL approval |
cULus Listed, General Purpose |
| CCC approval |
CCC approval / marking not required for products rated ??36 V |
| Ambient conditions |
| Ambient temperature |
-25 … 85 ??C (-13 … 185 ??F) |
| Storage temperature |
-40 … 85 ??C (-40 … 185 ??F) |
| Mechanical specifications |
| Connection type |
screw terminals |
