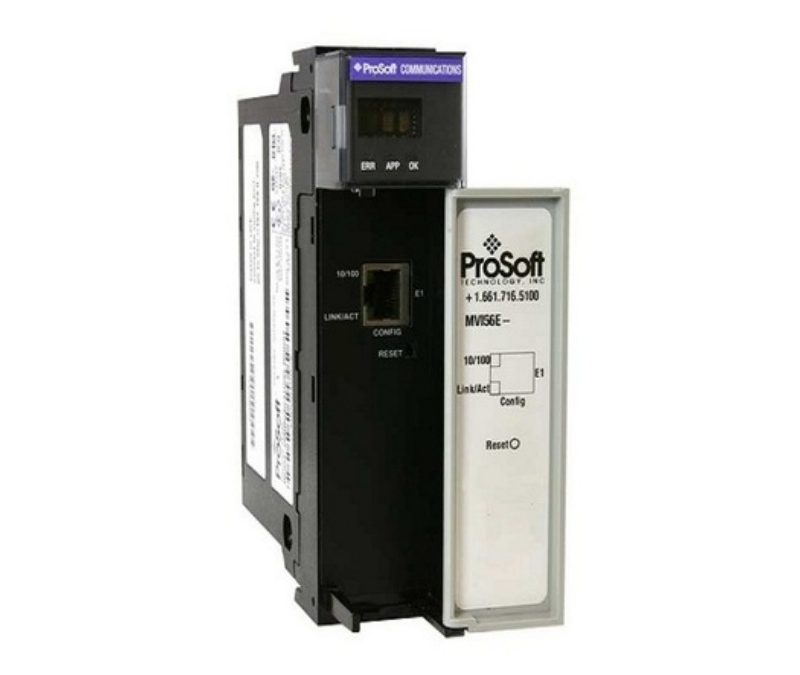

MVI56-EMNET Prosoft Communication Module
Model: MVI56-EMNET Prosoft Communication Module
Product Number: MVI56E-MNE…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Product Number: MVI56E-MNET
Model: Modbus TCP/IP Client/Server Enhanced Communication Module
Manufacturer: ProSoft Technology
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Specifications
- Backward-compatible with previous MVI56-MNET version
- Single-Slot 1756 ControlLogix backplane compatible
- 10/100 Mbps auto crossover detection Ethernet configuration and application
- User-definable module data memory mapping of up to 5000, 16-bit registers
- CIPconnect-enabled network configuration and diagnostics monitoring using ControlLogix 1756-ENxT and 1756-CNB modules and EtherNet/IP pass-through communication
- ProSoft Configuration Builder (PCB) software supported, a Windows-based graphical user interface providing simple product and network configuration
- Sample ladder logic and Add-On Instructions (AOI) are used for data transfer between module and processor
- Internal web server provides access to product documentation, module status, diagnostics, and firmware updates
- 4-character, alpha-numeric, scrolling LED display of status and diagnostics data in plain English – no cryptic error or alarm codes to decipher
- ProSoft Discovery Service (PDS) software used to locate the module on the network and assign temporary IP address
- Personality Module – a non-volatile industrial-grade Compact Flash (CF) card used to store network and module configuration, allowing quick in-the-field product replacement by transferring the CF card
- Availability: In stock
- Estimated Lead Time: Ships in 1 – 7 working days
- Shipping Weight: 2 Kg
