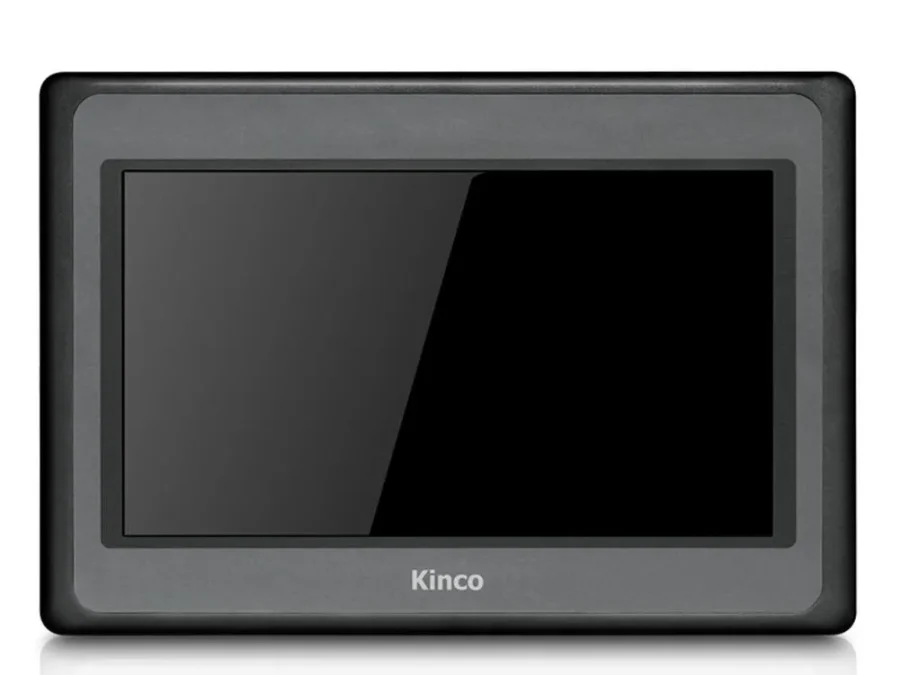

MT4532TE Kinco HMI Touch Screen
Model: MT4532TE Kinco HMI Touch Screen
Product Description? Model…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Product Description?
|
Model |
MT4532TE |
|
Performance?specification |
|
|
Display |
10.1″ ?TFT |
|
Resolution |
1024*600 |
|
Color |
65536 |
|
Backlight |
LED |
|
Brightness |
200cd/m2 |
|
Backlight Life |
50000 Hours |
|
Touch Panel |
4-Wire Precision Resistance Network |
|
CPU Processor |
32-bit 800MHz RISC |
|
Memory |
128M FLASH+64M DDR2 |
|
Recipe Memory & RTC |
512KB + RTC |
|
Printer Port |
USB/Serial Port |
|
Ethernet |
YES |
|
Program Download |
USB SLAVE/Serial Port |
|
COM Port |
COM0:RS232/RS485-2/422,COM2:RS232 |
|
Electrical Specification |
|
|
Rated Power |
5.3W |
|
Rated Voltage |
DC24V |
|
Input Range |
12~28VDC |
|
Power Down Allowed |
<3ms |
|
Insulation Resistance |
Greater than 50Mohm@ 500V DC |
|
Dielectric Strength Test |
500 VAC 1 Minute |
|
Structure Specification |
|
|
Shell Color |
Black |
|
Shell Material |
ABS |
|
Dimensions(mm) |
280??193??36mm |
|
Cutout Size(mm) |
261??180mm |
|
Weight |
0.89 Kg |
