Allen-Bradley

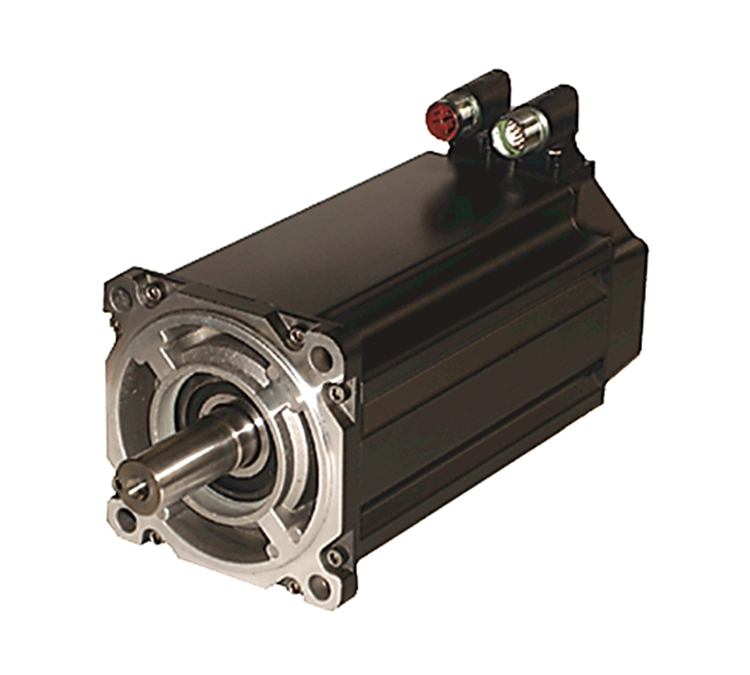

MPL-B420P-MJ72AA Low-Inertia Brushless Servo Motors
Model: MPL-B420P-MJ72AA Low-Inertia Brushless Servo Motors
Manufacturer Rockwell Auto…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Compatible Applications | Packaging, Converting, Material handling, Electronic assembly, Automotive |
| Compatible Servo Drives | Kinetix 5500, Kinetix 5700, Kinetix 6200/6500,Kinetix 6000, Kinetix 300/350, Kinetix 2000, and Kinetix 7000. |
| Mounting Holes | Type FF |
| Stack Length | 50.8 mm (2.0 in.) |
| Encoder | single-turn encoder |
| Peak Stall Current | 14.0 A |
| Continuous Stall Current | 4.5 A |
| Peak Stall Torque | 7.91 Nm (7.0 lb-in.) |
| Continuous Stall Torque | 3.5 Nm (2.7 lb-in.) |
| Rated Power | 1.5 kW |
| Torque Rating | 6.55 NM |
| Voltage | 400 V |
| Product Family | MP Series Low Inertia servo motors |
| Part Number/Catalog No. | MPL-B320P-SJ72AA |
| Series | Premium permanent magnet rotary servo motor |
| Frame Size | 4 = 115 mm |
| Brake | No |
| Series Type | Low-inertia |
| Voltage Class | 400 Volts |
| Magnetic Stack Length | 2 inches |
| Rated Speed | 5000 RPM |
| Feedback | Single-turn high-resolution encoder |
| Shaft Key/Seal | Shaft key/no shaft seal |
| Connectors | Circular DIN, right angle, 180 degrees rotatable |
| Mounting Flange | IEC metric |
| Factory Designated Options | Standard |
| UPC | 820919980510 |
