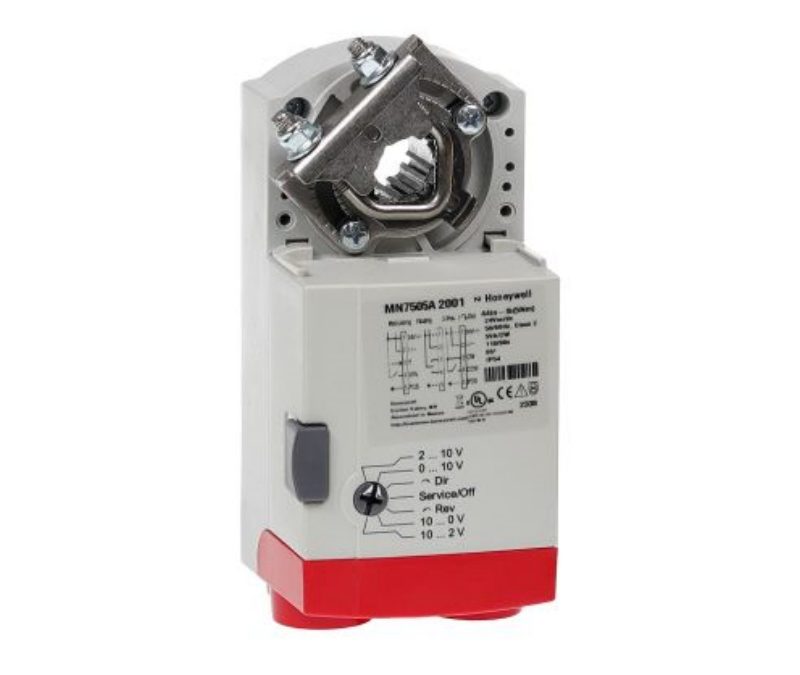

MN7505A2001 Honeywell Damper Actuators
Model: MN7505A2001 Honeywell Damper Actuators
Specifications Specificati…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Specifications
| In Stock | Yes |
|---|---|
| Ships Factory Direct | No |
| Manufacturer Part Number | MN7505A2001/U |
| Manufacturer | Honeywell |
| Product Series | MN7505 |
| Family Series | Honeywell Dampers, MN7505 Series |
| Description | (N05010) DIRECT COUPLED ACTUATOR |
| Control Signal | Floating, Modulating 2-10 VDC |
| Nominal Timing | 95 s |
| Nominal Supply Voltage | 24 VAC, 24 VDC |
| Rotational Stroke (Deg) | 95 |
| Fail-Safe Mode | Non-Spring Return |
| Torque Rating | 44 lb-in |
| Feedback | 2-10 VDC |
| Mounting | Direct Coupled |
| Shaft Size | Square 1/4-1/2 “, Round 3/8-5/8 “ |
| Shaft Rotation | By Switch |
| NEMA Rating | NEMA 2 |
| IP Rating | IP54 |
| Temperature Range | -5-140 °F |
| Internal Aux Switches | 0 |
| Manual Operation | Declutch Mechanism |
| Shaft Adapter Type | U-Bolt Clamp |
| Electrical Connections | Enclosed Screw Terminal Strip |
| Power Consumed Driving | 5 VA |
| Approvals | C-Tick, CE, cUL, UL |
| Comments | Integral 1/2 in NPSM Conduit Connection, Includes Mounting Hardware |
| Net Weight | 1.02 lbs |
| Gross Weight | 1.4 lbs |
