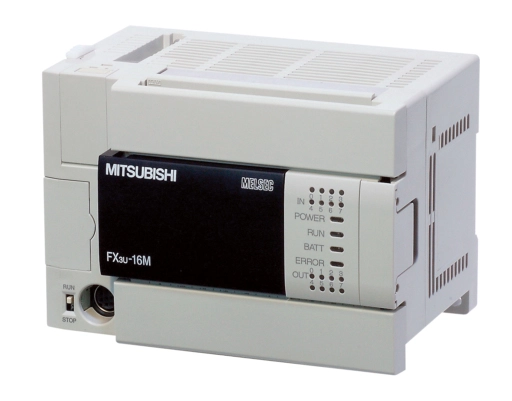

Mitsubishi Electric FX3U-16M (FX3U-16MR/ES) MELSEC-F Series PLC Specification Sheet
Model: Mitsubishi Electric FX3U-16M (FX3U-16MR/ES) MELSEC-F Series PLC Specification Sheet
Data Category Specific Par…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Data Category | Specific Parameters |
|---|---|
| Product Model | FX3U-16M (Base Model: FX3U-16MR/ES) |
| Brand | Mitsubishi Electric |
| Product Series | MELSEC-F Series |
| Product Type | PLC Base Unit |
| Material Number | 231486 |
| Power Supply | AC 100-240 V |
| Power Consumption | 30 W |
| Program Memory | 64K STEPS (RAM) |
| Integrated Digital Inputs | 8 (DC 24 V) |
| Integrated Digital Outputs | 8 (Relay type) |
| I/O Expansion Support | Yes |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 384 |
| Cycle Time | LD instruction: 65 ns; MOV instruction: 642 ns |
| Communication Interfaces | 1×RS-422; USB (optional) |
| Buffer Battery | Included |
| Protection Class | IP10 (IEC 60529) |
| Dimensions (W×H×D) | 130 mm × 90 mm × 86 mm |
| Net Weight | 0.6 kg |
| Operating Ambient Temperature | 0…55 °C |
| Certifications | CE (Compliant), UL/cUL (Compliant), UKCA (Compliant); EAC (Non-Compliant) |
| Shipping Approvals | ABS, BV, DNV GL, KR, LR, NK, RINA |
| Key Application | Small-scale industrial automation and control systems |
| Input Current Type | DC (for digital inputs) |
| Output Switching Medium | Relay (for digital outputs) |
