Mitsubishi

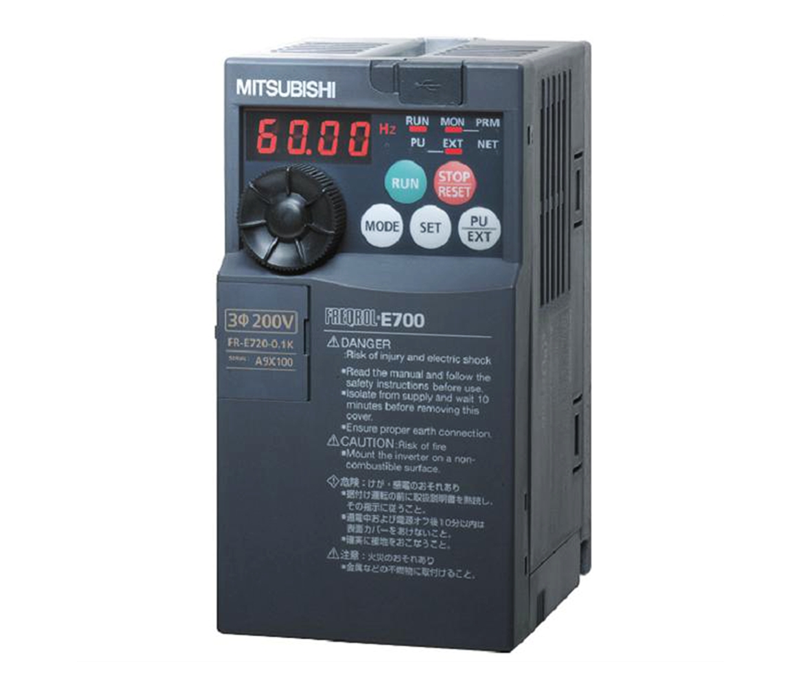

Mitsubishi Electric-FR-E720-0.75K inverter
Model: Mitsubishi Electric-FR-E720-0.75K inverter
Manufacturers Mitsubishi P…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Manufacturers
Mitsubishi
Product Description
- Product Series: FREQROL-E700
- Easy and powerful compact inverter FREQROL-E700 series three-phase 200V
- Rated capacity (kVA): 2.0
- Rated current (A): Five
- Overload current rating: 150% 60s, 200% 3s (inverse time characteristics)
- Voltage: 3-phase 200 ~ 240V
- Soft-PWM control / high carrier frequency PWM control (V / F control, advanced magnetic flux vector control, general-purpose magnetic flux vector control, optimum
- excitation control can be selected)
- Upper and lower limit frequency setting, frequency jump operation, external thermal input selection, instantaneous power failure restart operation, forward and reverse
- rotation prevention, remote setting, brake sequence, second function, multi-speed operation, stop-on-contact control, droop control, regeneration avoidance, slip
- compensation, operation mode selection, offline auto tuning function, PID control, computer link operation (RS-485)
- Analog input terminal points: Two point
- Analog input terminal specifications : Terminal 2: 0 ~ 10V, 0 ~ 5V selectable terminal 4: 0 ~ 10V, 0 ~ 5V, 4 ~ 20mA can be selected
- Digital input: Operation panel, the input by the parameter unit
- Ambient temperature: -10 ? ~ + 50 ? (non-freezing) (-10 ? ~ + 40 ? when the total closure structure specification)
- Ambient humidity: Less than 90% RH (non-condensing)
- Dimensions：7.0 cm x 12.7 cm x 12.7 cm
- Weight：0.8kg
- Country of Origin:Japan
