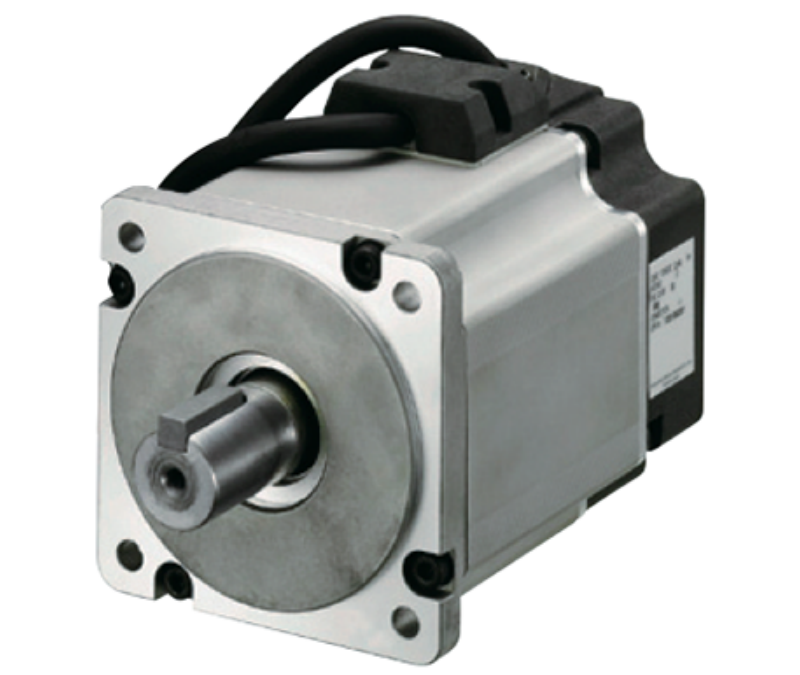

MHMJ042G1U Panasonic MINAS A5 Family Servo Motor
Model: MHMJ042G1U Panasonic MINAS A5 Family Servo Motor
Product type : MINAS A5 Fa…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
- Product type : MINAS A5 Family Servo Motor
- Series : MHMJ Series
- Type : High inertia
- Protection class : IP65
- Flange sq. dimension : 60 mm sq.
- Motor lead-out configuration : Lead wire
- Motor encoder connector : Lead wire
- Power supply capacity (kVA) : 0.9
- Voltage specifications : 200 V
- Rated output : 400 W
- Rated current (A (rms)) : 2.6
- Holding brake : with
- Oil seal : with
- Shaft : Key-way, center tap
- Rated torque (N ? m) : 1.3
- Momentary Max. peak torque (N ? m) : 3.8
- Max. current (A (o-p)) : 11.0
- Regenerative brake frequency (times/min) : Without option :No limit
- With option :No limit
- Option (External regenerative resistor) : Part No. : DV0P4283
- Rated rotational speed (r/min) : 3000
- Rated rotational Max. speed (r/min) : 5000
- Moment of inertia of rotor : ( x10-4 kg ? m2) 0.67
- Recommended moment of inertia ratio of the load and the rotor : 30 times or less
- Weight : 1.4 kg
- country of origin?? China
