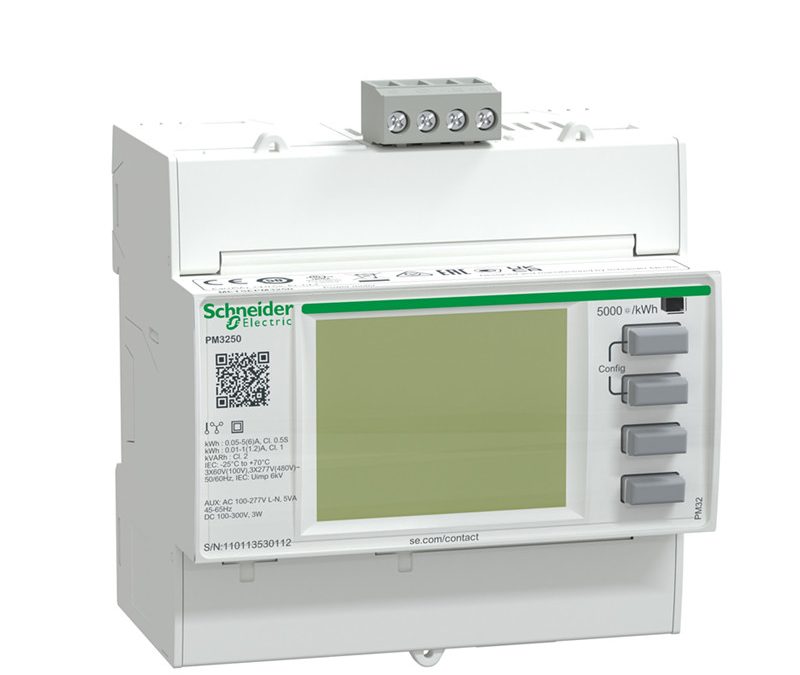

METSEPM3250 Schneider METSEPM3250 PM3250 power meter RS485
Model: METSEPM3250 Schneider METSEPM3250 PM3250 power meter RS485
Main Range PowerLogic Prod…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range | PowerLogic |
|---|---|
| Product name | PowerLogic PM3000 |
| Device short name | PM3250 |
| Product or Component Type | Power meter |
| Power quality analysis | Up to the 15th harmonic |
|---|---|
| Device Application | Multi-tariff Power monitoring Sub billing |
| Type of measurement | Active and reactive power Apparent power Current Voltage Energy Power factor Frequency Total current harmonic distortion THD (I) Total voltage harmonic distortion THD (U) |
| supply voltage | 100…277 V AC 45…65 Hz 173…480 V AC 45…65 Hz 100…300 V DC |
| Network Frequency | 60 Hz 50 Hz |
| Line Rated Current | 5 A 1 A |
| type of network | 1P + N 3P 3P + N |
| Power Consumption in VA | 5 VA |
| Display Type | Backlit LCD |
| display resolution | 128 x 96 pixels |
| Sampling rate | 32 samples/cycle |
| Measurement current | 0.02…1.2 A 0.05…6 A |
| Analogue input type | Current 0…5 A Current 0…1 A |
| Measurement voltage | 50…330 V AC 45…65 Hz direct 50…330 V AC 45…65 Hz phase to neutral 80…570 V AC 45…65 Hz direct 80…570 V AC 45…65 Hz phase to phase 570…999000 V AC 45…65 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 0 |
| Measurement accuracy | Current 0.3 % 0.5…6 A Current 0.5 % 0.1…1.2 A Voltage 0.3 % 50…330 V Voltage 0.3 % 80…570 V |
| Accuracy class | Class 0.5S active energy IEC 62053-22 Class 1 active energy IEC 62053-21 Class 2 reactive energy IEC 62053-23 Class C active energy EN 50470-3 |
| Number of Outputs | 0 |
| Information displayed | Tariff 4) |
| Communication port protocol | Modbus 9.6…38.4 kbauds |
| Communication port support | RS485 |
| Data recording | Time stamping Min/max of instantaneous values 5 alarms |
| Mounting Mode | Clip-on |
| Mounting support | DIN rail |
| Standards | BS EN 61557-12 IEC 61557-12 EN 61557-12 BS EN 61326-1 IEC 61326-1 EN 61326-1 BS EN 62052-11 IEC 62052-11 EN 62052-11 BS EN 62053-21 IEC 62053-21 EN 62053-21 BS EN 62053-22 IEC 62053-22 EN 62052-22 BS EN 62053-23 IEC 62053-23 EN 62052-23 BS EN 61010-1 EN 61010-1 IEC 61010-1 UL 61010-1 BS EN 61010-2-30 IEC 61010-2-30 EN 61010-2-30 UL 61010-2-30 ANSI C12.20 |
| Product certifications | CE IEC 61010-1 safety) CE EN 61557-12 power monitor) CE EN/IEC 61326-1 EMC) UKCA BS EN 61010-1 safety) UKCA BS EN 61557-12 power monitor) UKCA BS EN 61326-1 EMC) CULus EN 61010-1 safety) CULus UL 61010-1 safety) EAC sub-meter) RCM |
| Width | 3.5 in (90 mm) |
| Depth | 2.8 in (70 mm) |
| Height | 3.7 in (95 mm) |
| Net Weight | 0.57 lb(US) (0.26 kg) |
