Schneider

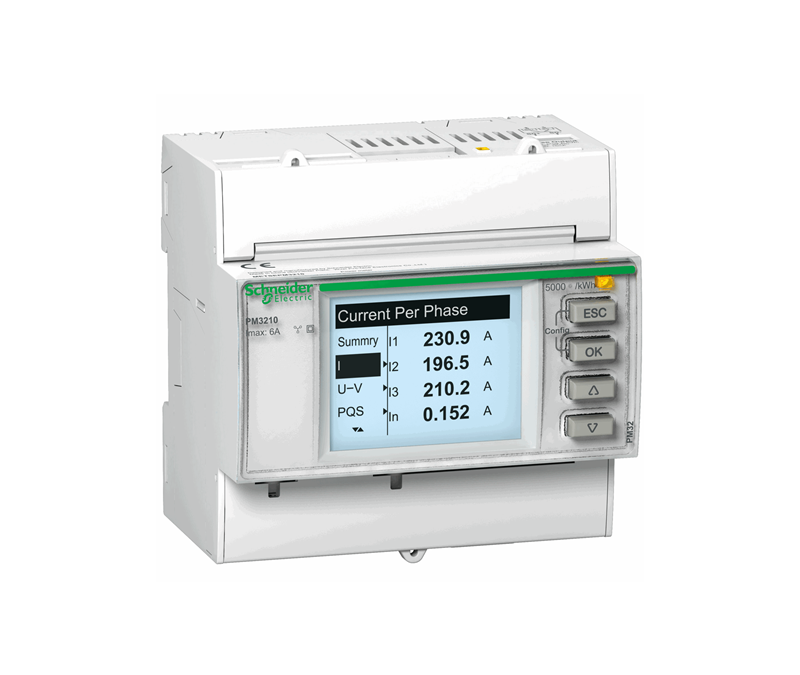

METSEPM3210 power meter – output digital and pulse
Model: METSEPM3210 power meter – output digital and pulse
MAIN SPECIFICATIONS Analog…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| MAIN SPECIFICATIONS | |
|---|---|
| Analogue Input Number | 100…277 V AC 45…65 Hz 100…300 V DC 173…480 V AC 45…65 Hz |
| Contacts Type And Composition | 1 A 5 A |
| Control Type | 1P + N 3P 3P + N |
| Display Type | backlit LCD |
| Measurement Accuracy | current 0.3 % 0.5…6 A current 0.5 % 0.1…1.2 A voltage 0.3 % 50…330 V voltage 0.3 % 80…570 V |
| Product Or Component Type | power meter |
| Communication Port Protocol | – |
| Device Short Name | PM3210 |
| EAN13 | 3606480481598 |
| Mounting Support | DIN rail |
| Power Quality Analysis | up to the 15th harmonic |
| Range | PowerLogic |
| Range Name | PM3000 series |
| Type Of Measurement | active and reactive power apparent power current energy frequency power factor total current harmonic distortion THD (I) total voltage harmonic distortion THD (U) voltage |
| COMPLEMENTARY | |
| Analogue Input Type | current 0…1 A current 0…5 A |
| Analogue Output Number | backlit LCD |
| Communication Gateway | 128 x 96 pixels |
| Display Resolution | 128 x 96 pixels |
| Output Voltage | current 0…1 A current 0…5 A |
| Product Name | PowerLogic PM3000 |
| Time Delay | current 0.3 % 0.5…6 A current 0.5 % 0.1…1.2 A voltage 0.3 % 50…330 V voltage 0.3 % 80…570 V |
| [In] Rated Current | 1 A 5 A |
| Accuracy Class | class 0.5S active energy conforming to IEC 62053-22 class 1 active energy conforming to IEC 62053-21 class 2 reactive energy conforming to IEC 62053-23 class C active energy conforming to EN 50470-3 |
| Communication Port Support | – |
| Compatibility Code | PM3210 |
| Data Recording | 5 alarms min/max of instantaneous values time stamping |
| Depth | 70 mm |
| Device Application | multi-tariff power monitoring sub billing |
| Frequency Measurement Range | 45-65 Hz |
| Height | 95 mm |
