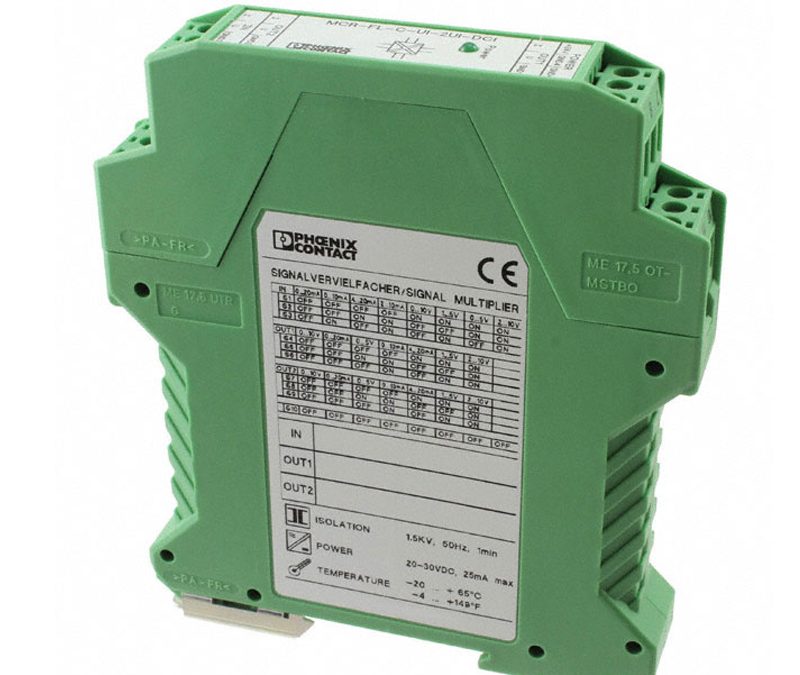

MCR-FL-C-UI-2UI-DCI Phoenix Contact Signal duplicator

Electrical isolation between input and output yes
Limit frequency (3 dB) 30 Hz
Maximum power dissipation for nominal condition 15 mW
Test voltage, input/output/supply 1.5 kV AC (50 Hz, 60 s)
Protective circuit Transient protection
Step response (10-90%) 12 ms
Maximum temperature coefficient < 0.015 %/K
Temperature coefficient, typical 0.0075 %/K
Maximum transmission error ≤ 0.15 % (of final value)
Transmission error, typical 0.05 % (of final value)

Supply voltage range 20 V DC … 30 V DC
Max. current consumption < 25 mA

Description of the input Current input
Number of inputs 1
Configurable/programmable Yes, preconfigured
Current input signal 0 mA … 24 mA (freely selectable in 0.1 mA steps)
Max. current input signal 50 mA
Input resistance current input 50 Ω
Current measuring range min. 8 mA
Supply voltage 24 V DC
