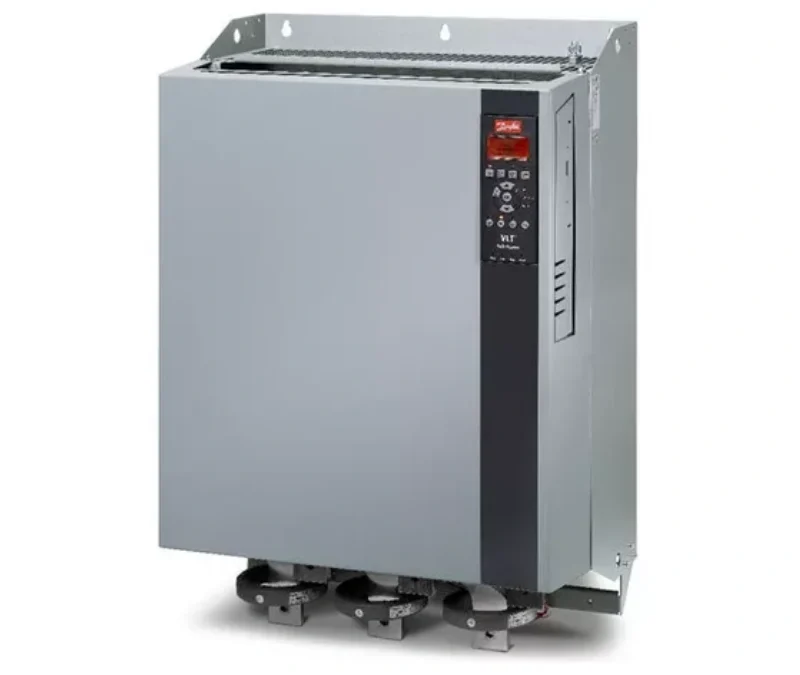

mcd5-0428c-t5-g4x-00-cv2 Danfoss softstarters
Model: mcd5-0428c-t5-g4x-00-cv2 Danfoss softstarters
Technical Specification Ma…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Technical Specification
| Manufacturer: | Danfoss |
| Series: | VLT MCD 500 |
| Model: | MCD5-0428C-T5-G4X-00-CV2 |
| Product Code: | 175G5540 |
| Application: | pumps / fans / general purpose |
| Capacity, kW: | 220 |
| Current, А: | 428 |
| Main power supply, V: | 200-525 |
| Phase: | 3 |
| Output frequency, Hz: | 50/60 |
| Enclosure: | IP 00 |
| Acceleration time, sec: | 1-180 |
| Deceleration time, sec: | 1-30 |
| Operation temperature, °С: | -10…..+60 |
| Max. switching cycle per hour: | 10 |
| Starting current, % of rated current: | 300 |
| Integrated bypass relay: | External |
| Control type: | digital |
| Microprocessor supply voltage: | ~ 110 or ~ 220V |
| Motor protection (thermal model): | + |
| Motor protection (input for thermistor/thermal relay): | + |
| Motor protection (low current) : | + |
| Motor protection (momentary motor overload): | + |
| Motor protection (Others): | + |
| JOG mode: | + |
| DC braking: | + |
| Inputs/Outputs: | 1 auxiliary programmable input, 3 preset inputs (start, stop, reset), 3 programmable relay outputs, analog output, a motor thermistor, 1 auxiliary power supply 24VDC, 200mA |
| Separately adjustable parameters: | more than 10 |
| Options: | DeviceNet communication modules, Modbus, Profibus, remote control operator |
