Schneider

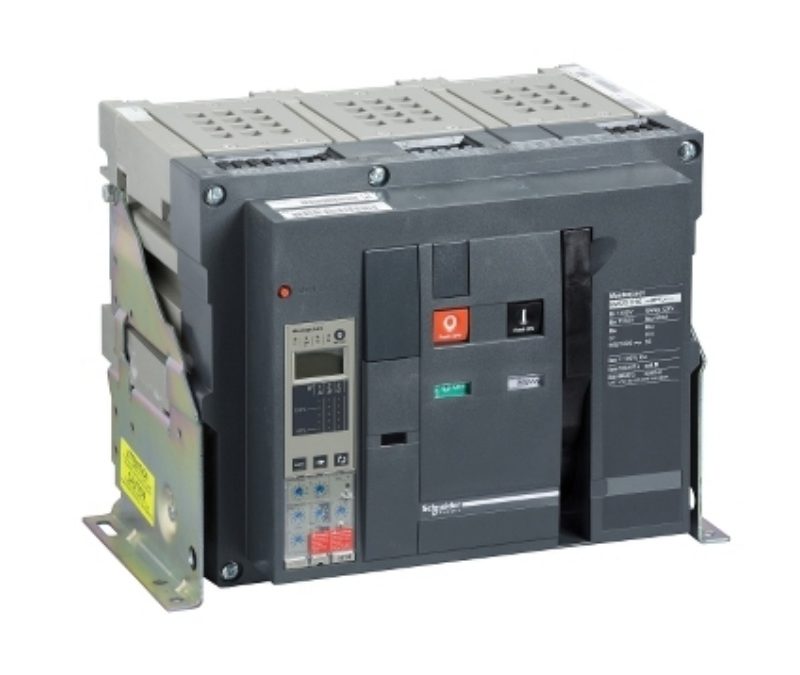

Masterpact NW16H1 48273 Schneider circuit breaker
Model: Masterpact NW16H1 48273 Schneider circuit breaker
Main Range MasterPacT Prod…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range | MasterPacT |
|---|---|
| Product name | MasterPact NW |
| Circuit breaker name | MasterPact NW16H1 |
| Product or component type | Circuit breaker |
| Device application | Power distribution protection |
| poles description | 3P |
| Control unit | Without control unit |
| [In] rated current | 1600 A at 40 °C |
| Performance type | H1 65 kA 440 V AC |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Selectivity category | Category B |
| Control type | Push-button |
| Mounting mode | Drawout |
| Height | 439 mm |
|---|---|
| Width | 441 mm |
| Depth | 395 mm |
| Net weight | 90 kg |
