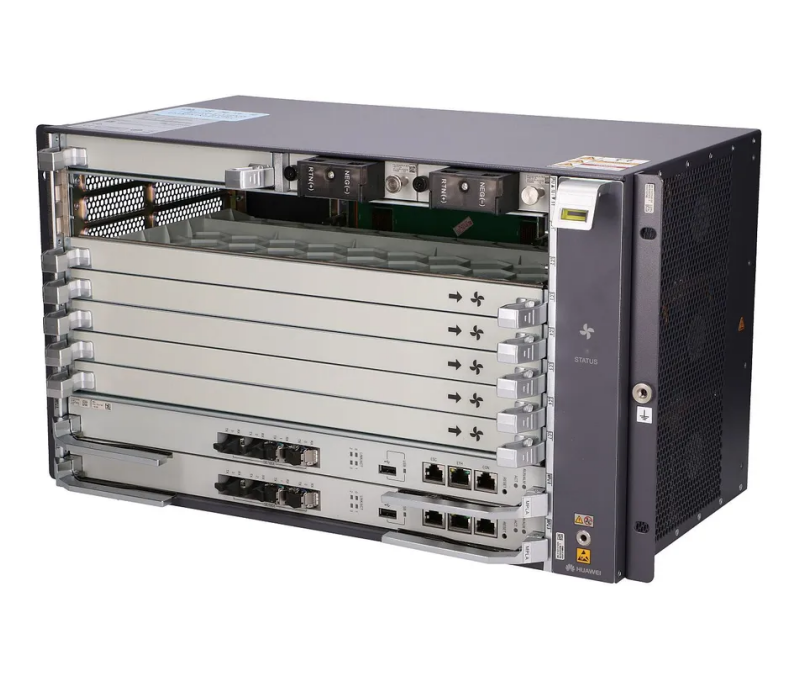

MA5800-x7 Huawei SmartAX
Model: MA5800-x7 Huawei SmartAX
Specification Number of …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
Specification
| Number of slots | |
| Service cards | 7 |
| Control modules | 2 |
| Power supply | 2 |
| Ports | |
| GPON | 112 |
| Ethernet | 4x1G |
| Service cards | |
| GPON | 16 ports |
| XPON | 8 ports |
| Capacity | 7Tb/с |
| 2-level functions | |
| VLAN | IEEE 802.1Q: 4094; QinQ; VLAN Translation |
| Mac Address Table | Table size: 262143 |
| Commutation protocols | STP/RSTP/MSTP; ERPS (G.8032) |
| Multi search engine | |
| IGMP snooping | v2/v3 |
| IGMP groups | 8192 |
| Multicast VLAN (MVR) | Support |
| Multicast routing | PIM-SSM |
| 3-level functions | |
| ARP-table | 65536 entries |
| Routing table | IPv4 – 65536 routes IPv6 – 16384 routes |
| Routing protocols | Static Routing; RIPv1/2; OSPFv2; IS-IS; BGP |
| MPLS / VPN | Support. MPLS LDP, VPLS, PWE3 |
| Security | |
| IPv4 script | 65535 Ingress + Egress |
| IPv6 script | 65535 Ingress + Egress |
| Local AAA | Support |
| RADIUS, TACACS+ | Support |
| DHCP Server | Not supported |
| DHCP Relay option82 | Support |
| DHCP Snooping | Support |
| Loop detection | Support |
| IP Source Guard | Support |
| Broadcast, multicast, unknown unicast suppression | Support |
| Quality of Service QoS | |
| QoS queues per port | 8 |
| Restriction of traffic | Support |
| Traffic signs | 802.1 p, DSCP |
| IPv6 | Static Routing; ICMPv6; IPv6 Neighbor Discovery; RIPng; OSPFv3; IS-IS IPv6 |
| Management | Telnet; SSH; LLDP; SNMP v1/v2/v3; Syslog; NTP |
| OAM | 802.3ah (EFM); 802.1ag (CFM); Y.1731 |
| Working conditions | |
| Humidity | 5 to 85% (non-condensing) |
| Operating temperature | from -40 to +65°C |
| Maximum power consumption | up to 662 in |
| Dimensions (HxWxD) | 263.9mm (6U) x 482.6mm x 268.7mm |
| Weight | 26kg |
