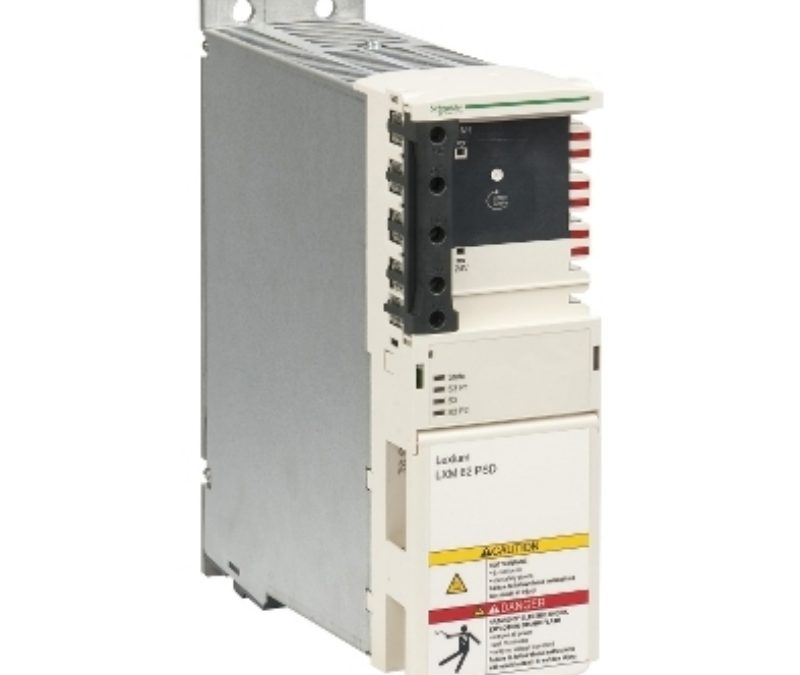

LXM62PD84A11010 Schneider power supply drive
Model: LXM62PD84A11010 Schneider power supply drive
Main Range of Product PacD…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | PacDrive 3 |
|---|---|
| Product or Component Type | Power supply |
| Component name | LXM62 |
| Supply circuit type | AC |
|---|---|
| [Us] rated supply voltage | 400 V three phase – 10…10 %) 230 V three phase – 10…10 %) 230 V single phase – 10…10 %) |
| Supply frequency | 50/60 Hz +/- 5 % |
| [Uc] control circuit voltage | 24 V DC – 20…25 %) |
| Power supply output current | 84 A |
| Bus voltage | 270…700 V |
| Maximum DC bus voltage | 860 V |
| Maximum cable capacity | 1.36 mF |
| Line Rated Current | 21 A single phase AC 42 A three phase AC |
| Peak current | 42 A single phase AC 1 s 84 A three phase AC 1 s |
| Nominal power | 22.1 kW 400 V three phase AC 26.6 kW 480 V three phase AC |
| Maximum power | 44.2 kW 400 V three phase AC 53.2 kW 480 V three phase AC |
| Holding time | 15 min |
| Braking resistance | 15 Ohm |
| Permanent braking power | 400 W |
| Maximum braking power | 46 kW |
| Output type | 2 relays volt-free contacts |
| Physical interface | SERCOS III |
| Marking | CE |
| Safety level | Can reach SIL 2 EN 61508 Can reach PL d/category 3 EN/ISO 13849-1 |
| Overvoltage category | III EN 61800-5-1 |
| Depth | 10.6 in (270 mm) |
| Width | 3.5 in (89.5 mm) |
| Height | 12.2 in (310 mm) |
| Net Weight | 13.9 lb(US) (6.3 kg) |
