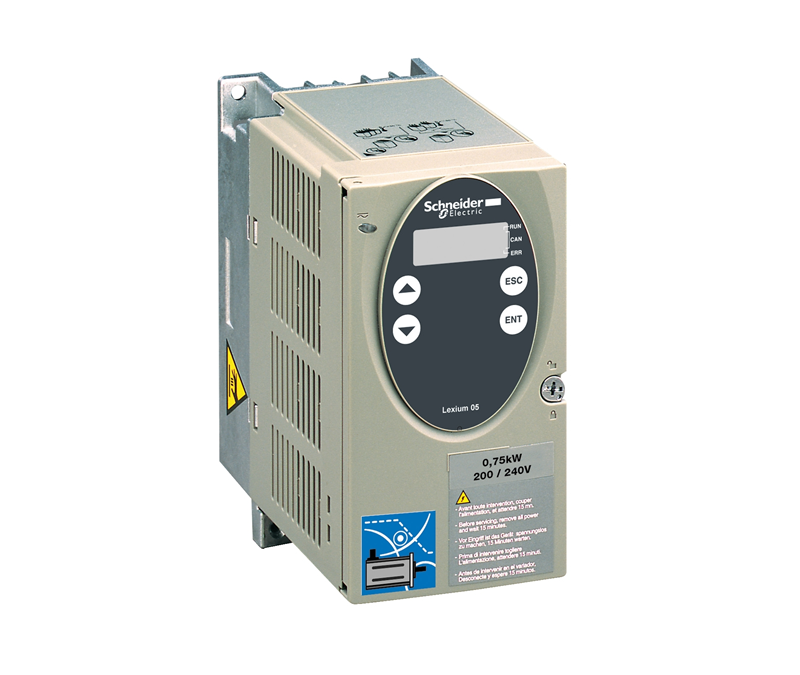

LXM05AD10M2 Schneider motion servo drive LXM05A

Manufacturer : Schneider Electric
Product No. : LXM05AD10M2
Product type : LXM05A Motion servo drive
Network number of phases : Single phase
Power supply voltage : 200…240 V – 15…10 %
Continuous output current
3.2 A at 8 kHz
4 A at 4 kHz
Nominal power : 0.75 kW at 4 kHz
Type of polarization
Integrated and switchable impedances for CANopen
No polarization impedances for Modbus
Power supply voltage limits : 170…264 V
Supply frequency : 50/60 Hz – 5…5 %
Power supply frequency limits : 47.5…63 Hz
Transient RMS output current
6 A at 8 kHz for 3 s
7 A at 4 kHz for 3 s
Line current
6.7 A at 240 V
8.1 A at 200 V
Maximum prospective line Isc : 1 kA
Switching frequency
4 kHz
8 kHz
Overvoltage category : III
Inrush current : < 60 A
Leakage current : < 30 mA
Output voltage : <= power supply voltage
Insulation : Electrical between power and control
Weight : 1.1 Kg
