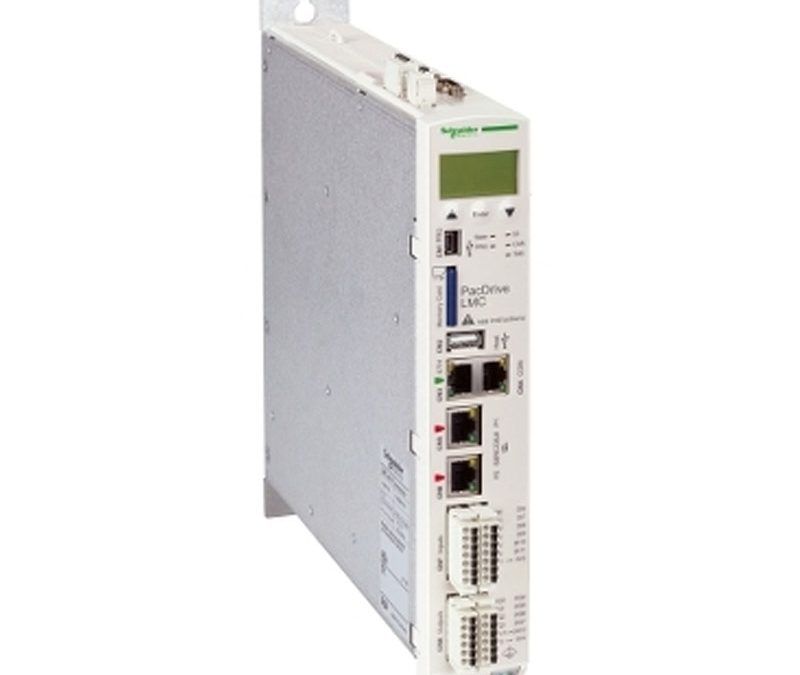

LMC201CAA10000 Schneider Motion controller
Model: LMC201CAA10000 Schneider Motion controller
Range of Product PacDrive …
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range of Product | PacDrive 3 |
|---|---|
| Product or Component Type | Motion controller |
| Product Compatibility | LMC201 |
|---|---|
| Number of axis | 8 |
| Discrete input number | 8 digital input IEC 61131-2 Type 1 4 touch probe input IEC 61131-2 Type 1 |
| Discrete input voltage | 15…30 V – 3…5 V |
| discrete input voltage type | DC |
| Discrete input current | 4 mA digital input |
| Anti bounce filtering | 100 µs…4.29 s configurable digital input 100 µs…4.29 s configurable touch probe input 100 µs…4.29 s configurable interrupt input |
| Maximum cable distance between devices | <164.04 ft (50 m) |
| Discrete output number | 8 digital output |
| Discrete output current | 500 mA digital output |
| Maximum leakage current | 0.5 mA |
| Maximum Number of I/O Expansion Module | 1 |
| [Us] rated supply voltage | 24 V DC |
| Power Consumption in W | 30 W |
| Memory Type | 512 MB RAM DDR2 128 kB NVRAM |
| Programming language | LD (ladder) SFC (sequential function chart) ST (structured text) CFC (continuous function chart) FBD (function block diagram) IL (instruction list) |
| Integrated connection type | 2 Ethernet port RJ45 Sercos 1 Ethernet port RJ45 Ethernet 10/100BASE-T, FTP/HTTP 1 Ethernet port RJ45 master encoder 1 serial link RJ45 RS232/RS485 1 CAN port SUB-D 9 CANopen 1 USB port USB type A |
| Supply | Power supply 24 VDC |
| Width | 1.73 in (44 mm) |
| Height | 10.63 in (270 mm) |
| Depth | 8.74 in (222 mm) |
| Net Weight | 4.85 lb(US) (2.2 kg) |
| Standards | CSA C22.2 No 14 CSA C22.2 No 142 UL 508 EN/IEC 61131-2 |
|---|---|
| Product Certifications | cULus CSA CE EAC |
| Ambient air temperature for operation | 41…131 °F (5…55 °C) |
| Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20EN/IEC 60529 |
| Pollution degree | 2 IEC 61131-2 |
| Operating altitude | 0…6561.68 ft (0…2000 m) |
| Vibration resistance | 3.5 mm 5…8.4 Hz 10 m/s² 8.4…150 Hz |
| Shock resistance | 150 m/s² 6 ms operation)EN/IEC 60721-3-3 |
| Category | US1PC5218354 |
|---|---|
| Discount Schedule | PC52 |
| GTIN | 3606485305554 |
| Returnability | No |
| Country of origin | US |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.02 in (10.2 cm) |
| Package 1 Width | 12.80 in (32.5 cm) |
| Package 1 Length | 16.73 in (42.5 cm) |
| Package 1 Weight | 7.05 lb(US) (3.2 kg) |
| Unit Type of Package 2 | S06 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 29.53 in (75.0 cm) |
| Package 2 Width | 15.75 in (40.0 cm) |
| Package 2 Length | 23.62 in (60.0 cm) |
| Package 2 Weight | 17.64 lb(US) (8.0 kg) |
