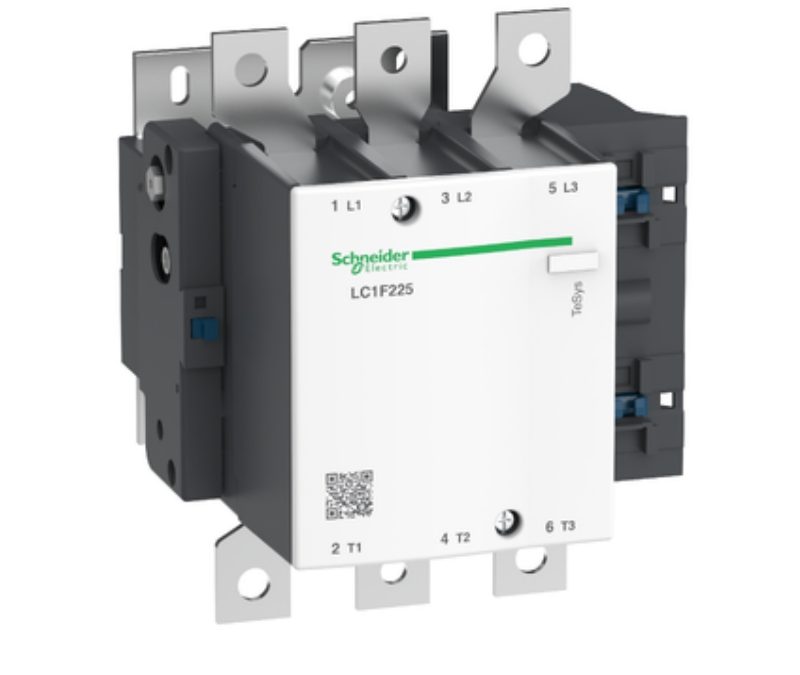

LC1F225 Schneider Magnetic contactors
Model: LC1F225 Schneider Magnetic contactors
Main Range TeSys Product n…
- Genuine products, direct from the factory
- Technical selection and commissioning support
- Bulk purchasing and customization available
Specifications & Service
| MOQ | 1 PCS |
|---|---|
| Warranty | 1 year |
| Delivery Time | 3-5 days |
| Shipping | FedEx/DHL/UPS/TNT |
| Payment | TT/Western Union |
Product Details
| Range | TeSys |
|---|---|
| Product name | TeSys F |
| Product or Component Type | Contactor |
| Device short name | LC1F |
| contactor application | Motor control Resistive load |
| Utilisation category | AC-4 AC-1 AC-3 |
| poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | <= 690 V AC 50/60 Hz <= 460 V DC |
| [Ie] rated operational current | 315 A 104.0000000000 °F (40 °C)) <= 440 V AC-1 225 A 131.0000000000 °F (55 °C)) <= 440 V AC-3 |
| Motor power kW | 110 kW at 380…400 V AC 50/60 Hz (AC-3) 110 kW at 415 V AC 50/60 Hz (AC-3) 110 kW at 440 V AC 50/60 Hz (AC-3) 129 kW at 500 V AC 50/60 Hz (AC-3) 63 kW at 220…240 V AC 50/60 Hz (AC-3) 129 kW at 660…690 V AC 50/60 Hz (AC-3) 40 kW at 400 V AC 50/60 Hz (AC-4) |
| [Uc] control circuit voltage | 24…575 V AC 40…400 Hz with LX9 coil 24…460 V DC with LX4 coil 100…250 V AC 50/60 Hz with LXE coil 100…380 V DC with LXE coil |
|---|---|
| [Uimp] rated impulse withstand voltage | 8 kV |
| Overvoltage category | III |
| [Ith] conventional free air thermal current | 315 A (at 104.0000000000 °F (40 °C)) |
| Irms rated making capacity | 2250 A conforming to IEC 60947-4-1 |
| Rated breaking capacity | 1800 A conforming to IEC 60947-4-1 |
| [Icw] rated short-time withstand current | 1800 A 104.0000000000 °F (40 °C) – 10 s 1000 A 104.0000000000 °F (40 °C) – 30 s 850 A 104.0000000000 °F (40 °C) – 1 min 560 A 104.0000000000 °F (40 °C) – 3 min 440 A 104.0000000000 °F (40 °C) – 10 min |
| Associated fuse rating | 315 A gG at <= 440 V 250 A aM at <= 440 V |
| Average impedance | 0.32 mOhm – Ith 315 A 50 Hz |
| [Ui] rated insulation voltage | 1000 V IEC 60947-4-1 1500 V VDE 0110 group C |
| Power dissipation per pole | 32 W AC-1 16 W AC-3 |
| Control circuit voltage limits | Operational: 0.85…1.1 Uc AC 40…400 Hz with LX9 coil Drop-out: 0.2…0.55 Uc AC 40…400 Hz with LX9 coil Operational: 0.85…1.1 Uc DC with LX4 coil Drop-out: 0.15…0.2 Uc DC with LX4 coil Operational: 85…275 V AC 50/60 Hz with LXE coil Drop-out: 0…60 V AC 50/60 Hz with LXE coil Operational: 85…418 V DC with LXE coil Drop-out: 0…45 V DC with LXE coil |
| Heat dissipation | 8…9.8 W 2.2…2.5 W |
